Festo
8210810

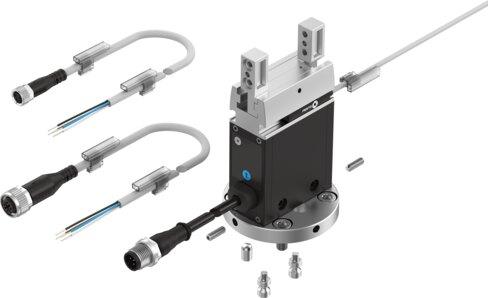

Parallel gripper kit for robots EHPS-25-A-RA50
The Festo size 25 electric parallel gripper features a two-jaw configuration driven by a DC servo motor utilizing a worm gear unit, T-shape, and gear rack/pinion structural design with a plain-bearing guide. It delivers a 16 mm stroke per gripper jaw, a repetition accuracy of 0.01 mm, a max cycle rate of 0.8 Hz, a max current consumption of 2 A, a max interchangeability of 0.2 mm, a rotational symmetry of 0.2 mm, a max gripper jaw angular play ax, ay of 0.3 deg, and a max gripper jaw backlash Sz of 0.04 mm. This component conforms to standard IEC 61010-1, supports any mounting position, and includes position sensing via proximity switch, a latching switch for control elements, and an LED ready status indication. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8210810
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8210810.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Stroke per gripper jaw
- 16 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.3 deg
- Max. gripper jaw backlash Sz
- 0.04 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.01 mm
- Number of gripper jaws
- 2
- Actuator system
- Electrical
- Mounting position
- Any
- Gripper function
- Parallel
- Structural design
- Worm gear unit | T-shape | Gear rack/pinion | Electric gripper
- Conforms to standard
- IEC 61010-1
- Guide
- Plain-bearing guide
- Position sensing
- Via proximity switch
- Motor type
- DC servo motor
- Control elements
- Latching switch
- Ready status indication
- LED
- Max. cycle rate
- 0.8 Hz
- Max. current consumption
- 2 A
- Nominal operating voltage DC
- 24 V
- Permissible voltage uctuations
- +/- 10%
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Noise level
- 70 dB(A)
