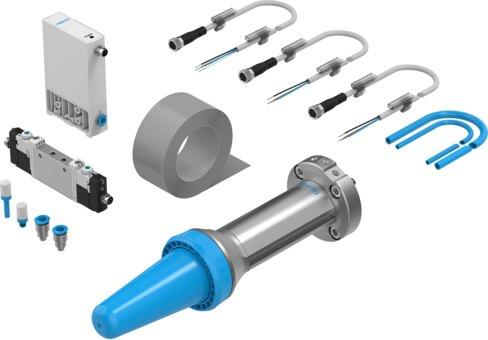

Reference imageConfirm configuration by manufacturer part number.
Festo
8210811
Adaptive shape gripper kit for robots DHEF-20-A-RA50
The Festo size 20 industrial component features a double-acting adaptive gripper function with a standard shaped handle cap version, an inverting cap structural design, and a positively driven motion sequence. Operating with an actuator pressure range of 0.1 MPa to 0.8 MPa and a cap operating pressure of 0.007 MPa to 0.01 MPa, this unit accommodates diameters to be gripped from 12 mm to 38 mm across a 66 mm stroke with any mounting position. Position sensing is enabled via a proximity switch alongside a basic guide, a pick-up tolerance of ± 4 mm, and a storage tolerance of ± 2 mm. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8210811
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8210811.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 20
- Shaped handle cap version
- Standard
- Stroke
- 66 mm
- Min. diameter to be gripped
- 12 mm
- Max. diameter to be gripped
- 38 mm
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Adaptive
- Structural design
- Inverting cap | Positively driven motion sequence
- Guide
- Basic guide
- Position sensing
- Via proximity switch
- Pick-up tolerance
- ± 4 mm
- Storage tolerance
- ± 2 mm
- Operating pressure of actuator
- 0.1 MPa...0.8 MPa | 1 bar...8 bar | 14.5 psi...116 psi
- Operating pressure of cap
- 0.007 MPa...0.01 MPa | 0.07 bar...0.1 bar | 1.015 psi...1.45 psi
- Burst pressure of cap
- 0.03 MPa | 0.3 bar | 4.35 psi
- Recommended ow rate for pressure regulator
- 10 l/min
- Max. operating frequency of pneumatic gripper
- 1 Hz
- Retracting time
- 290 ms
- Advancing time
- 270 ms
- Max. speed without gripped object
- 290 mm/s
- Max. speed during gripping
- 120 mm/s
- Theoretical force at 6 bar, advancing
- 158 N
- Theoretical force at 6 bar, retracting
- 189 N
- Dynamic transverse load max. projection
- 2.3 N
- Contact force on the gripping object
- 20 N
