Festo
8211015

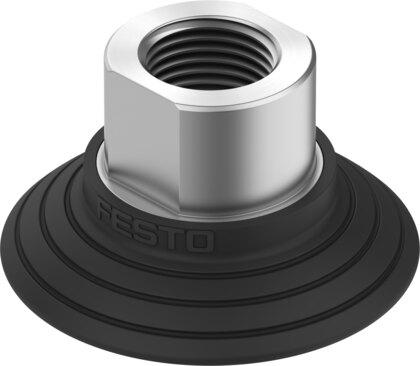

Suction cup with connection OGVM-50-S-N-G38F
The Festo 8211015 is a round, flat industrial component featuring a 50 mm suction cup diameter, an 8.4 cm³ suction cup volume, and 5 mm of height compensation for a minimum workpiece radius of 45 mm. Engineered with an internal thread G3/8 vacuum connection positioned at the top, it operates within a pressure range of -95 kPa to 0 kPa and delivers a holding force of 90 N alongside a lateral force of 64 N at a nominal operating pressure of -60 kPa. Weighing 25 g with a black color scheme, this part achieves a CRC 2 corrosion resistance rating and functions in ambient temperatures from -20 °C to 80 °C using atmospheric air operating media. Request a quote today by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8211015
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8211015.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 5 mm
- Min. workpiece radius
- 45 mm
- Nominal width
- 7 mm
- Suction cup diameter
- 50 mm
- Suction cup volume
- 8.4 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round, at
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -60 kPa | -0.6 bar | -8.7 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1/A2-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 90 N
- Lateral force at nominal operating pressure
- 64 N
- Product weight
- 25 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Internal thread G3/8
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
