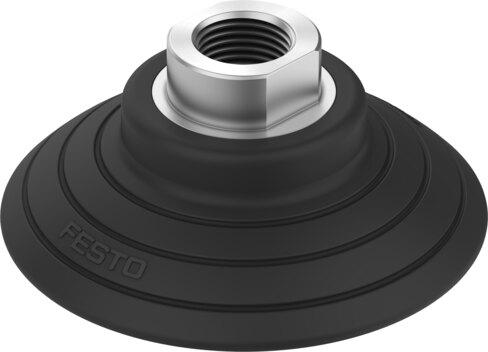

Name: Festo 8211016 Suction cup with connection OGVM-80-S-N-G38F
Brand: Festo

Suction cup with connection OGVM-80-S-N-G38F

The Festo part number 8211016 is a round, flat industrial component featuring an 80 mm suction cup diameter, 35 cm³ suction cup volume, and 7.6 mm height compensation with an internal thread G3/8 vacuum connection. Operating within a pressure range of -95 kPa to 0 kPa and a nominal operating pressure of -60 kPa, this 60 g black component delivers a holding force of 225 N and a lateral force of 113 N. It is rated for moderate corrosion stress with a CRC of 2, operates in ambient temperatures from -20 °C to 80 °C, and requires atmospheric air based on ISO 8573-1:2010 [7:-:-]. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8211016
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8211016.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Suction cup height compensation: 7.6 mm
Min. workpiece radius: 70 mm
Nominal width: 8 mm
Suction cup diameter: 80 mm
Suction cup volume: 35 cm³
Connection position: up
Mounting position: Any
Suction cup shape: Round, at
Operating pressure: -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
Nominal operating pressure: -60 kPa | -0.6 bar | -8.7 psi
Operating medium: Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-A1/A2-L
Ambient temperature: -20 °C...80 °C
Holding force at nominal operating pressure: 225 N
Lateral force at nominal operating pressure: 113 N
Product weight: 60 g
Type of mounting: Via vacuum connection
Vacuum connection: Internal thread G3/8
Color: Black
Shore hardness: 60 +/-5
Material of screwed plug: Wrought aluminum alloy
Note on materials: RoHS compliant
Suction cup material: NBR

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8211016. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
