Festo
8211017

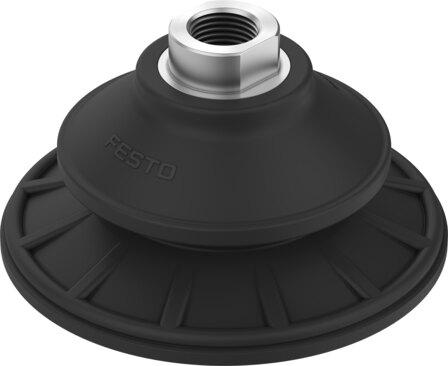

Suction cup with connection OGVM-100-S-N-G38F
The Festo 8211017 is a round, flat industrial component featuring a 100 mm suction cup diameter, 9.5 mm height compensation, and an internal thread G3/8 vacuum connection positioned at the top. Operating across a pressure range of -95 kPa to 0 kPa with a 68 cm³ suction cup volume, this black part delivers a holding force of 351 N and a lateral force of 140 N at its nominal operating pressure of -60 kPa. Designed with moderate corrosion stress resistance and an ambient temperature tolerance of -20 °C to 80 °C, it weighs 84 g and supports mounting in any position via the vacuum connection. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8211017
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8211017.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 9.5 mm
- Min. workpiece radius
- 100 mm
- Nominal width
- 8 mm
- Suction cup diameter
- 100 mm
- Suction cup volume
- 68 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round, at
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -60 kPa | -0.6 bar | -8.7 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1/A2-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 351 N
- Lateral force at nominal operating pressure
- 140 N
- Product weight
- 84 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Internal thread G3/8
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
