Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

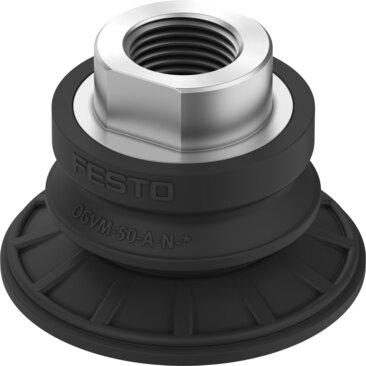

Reference imageConfirm configuration by manufacturer part number.
Festo
8211027
Suction cup with connection OGVM-50-A-N-G38F
The Festo 50 mm round protective bellows 1.5-fold industrial component features a 7 mm nominal width, 11.5 mm suction cup height compensation, and 15 cm³ suction cup volume with an internal thread G3/8 vacuum connection. Operating at a nominal pressure of -60 kPa within a -95 kPa to 0 kPa range, this black 36 g unit delivers a 90 N holding force and 72 N lateral force at nominal operating pressure. Rated at CRC 2 for moderate corrosion stress and VDMA24364-A1/A2-L LABS conformity, it functions across an ambient temperature range of -20 °C to 80 °C using atmospheric air based on ISO 8573-1:2010 [7:-:-] in any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8211027
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8211027.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 11.5 mm
- Min. workpiece radius
- 35 mm
- Nominal width
- 7 mm
- Suction cup diameter
- 50 mm
- Suction cup volume
- 15 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- round protective bellows 1.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -60 kPa | -0.6 bar | -8.7 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1/A2-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 90 N
- Lateral force at nominal operating pressure
- 72 N
- Product weight
- 36 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Internal thread G3/8
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8211027. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
