Festo
8211028

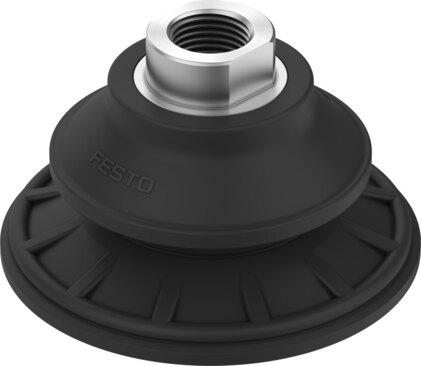

Suction cup with connection OGVM-80-A-N-G38F
The Festo 8211028 is a round protective bellows 1.5-fold industrial component featuring an 80 mm suction cup diameter, 22 mm suction cup height compensation, and a nominal width of 8 mm with an internal thread G3/8 vacuum connection positioned up. Operating within a pressure range of -95 kPa to 0 kPa and a nominal operating pressure of -60 kPa, this black 69 g unit delivers a holding force of 246 N and a lateral force of 225 N at nominal operating pressure. It accommodates a minimum workpiece radius of 75 mm, a suction cup volume of 64 cm³, an ambient temperature range of -20 °C to 80 °C, and operates using atmospheric air based on ISO 8573-1:2010 [7:-:-] with moderate corrosion stress CRC 2 and VDMA24364-A1/A2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8211028
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8211028.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 22 mm
- Min. workpiece radius
- 75 mm
- Nominal width
- 8 mm
- Suction cup diameter
- 80 mm
- Suction cup volume
- 64 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- round protective bellows 1.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -60 kPa | -0.6 bar | -8.7 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1/A2-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 246 N
- Lateral force at nominal operating pressure
- 225 N
- Product weight
- 69 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Internal thread G3/8
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8211028. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
