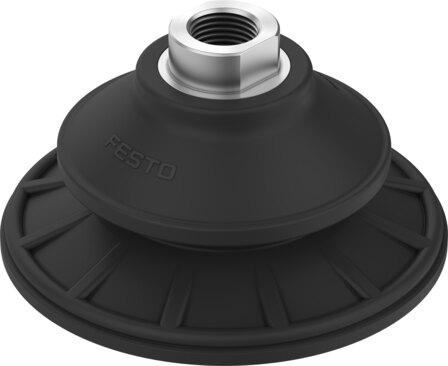

Reference imageConfirm configuration by manufacturer part number.
Festo
8211029
Suction cup with connection OGVM-100-A-N-G38F
The Festo part number 8211029 is a round 1.5-fold protective bellows industrial component featuring a 100 mm suction cup diameter, a 26 mm height compensation, and a nominal width of 8 mm with an internal thread G3/8 vacuum connection. Operating within a pressure range of -95 kPa to 0 kPa at an ambient temperature of -20 °C to 80 °C, this 104 g black component delivers a holding force of 379 N and a lateral force of 346 N at a nominal operating pressure of -60 kPa. It exhibits a VDMA24364-A1/A2-L LABS conformity and a moderate corrosion stress rating of CRC 2 for atmospheric air operating media based on ISO 8573-1:2010 [7:-:-]. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8211029
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8211029.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 26 mm
- Min. workpiece radius
- 90 mm
- Nominal width
- 8 mm
- Suction cup diameter
- 100 mm
- Suction cup volume
- 115 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- round protective bellows 1.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -60 kPa | -0.6 bar | -8.7 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1/A2-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 379 N
- Lateral force at nominal operating pressure
- 346 N
- Product weight
- 104 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Internal thread G3/8
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
