Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

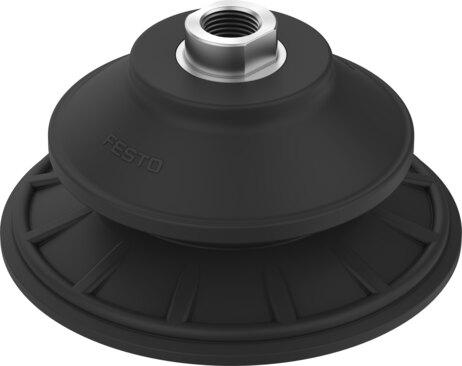

Reference imageConfirm configuration by manufacturer part number.
Festo
8211030
Suction cup with connection OGVM-125-A-N-G38F
Engineered with a 125 mm round protective bellows 1.5-fold shape and 32 mm suction cup height compensation, this Festo industrial component provides a nominal width of 8 mm, a suction cup volume of 241 cm³, and a product weight of 183 g in black. Operating within a pressure range of -95 kPa to 0 kPa and a nominal operating pressure of -60 kPa, it delivers a holding force of 587 N and a lateral force of 426 N for a minimum workpiece radius of 140 mm. Featuring a G3/8 internal thread vacuum connection with an upward connection position, the unit mounts in any position, operates in ambient temperatures from -20 °C to 80 °C using atmospheric air based on ISO 8573-1:2010 [7:-:-], and meets CRC 2 moderate corrosion stress alongside VDMA24364-A1/A2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8211030
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8211030.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 32 mm
- Min. workpiece radius
- 140 mm
- Nominal width
- 8 mm
- Suction cup diameter
- 125 mm
- Suction cup volume
- 241 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- round protective bellows 1.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -60 kPa | -0.6 bar | -8.7 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1/A2-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 587 N
- Lateral force at nominal operating pressure
- 426 N
- Product weight
- 183 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Internal thread G3/8
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8211030. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
