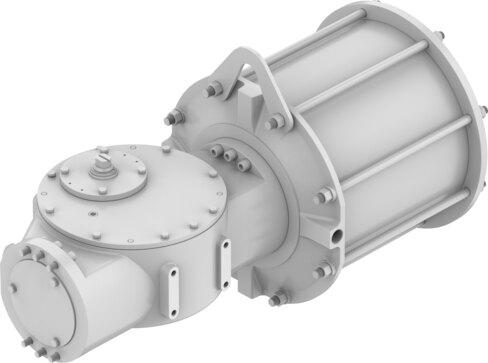

Name: Festo 8211835 Quarter turn actuator DFPD-9500-SY-Y-90-RD-F1625
Brand: Festo

Quarter turn actuator DFPD-9500-SY-Y-90-RD-F1625

The Festo part number 8211835 is a double-acting industrial component featuring a kinematic yoke system with a 9500 valve actuator size, an F1625 flange hole pattern, and a 90-degree swivel angle. Operating within a pressure range of 3 bar to 4.6 bar (43.5 psi to 66.7 psi) and certified for safety functions to ISO 13849 and IEC 61508, this unit supports SIL 2 low demand mode or SIL 3 in a redundant architecture. It incorporates an ISO 5211 standard valve connection, a VDI/VDE 3845 NAMUR valve connection, and a VDI/VDE 3845 Size AA 3 connection point for positioners and position sensors. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8211835
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8211835.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 9500
Flange hole pattern: F1625
Swivel angle: 90 deg
End-position adjusting range at 0°: -5 deg...5 deg
End-position adjusting range at nominal swivel angle: -5 deg...5 deg
Depth shaft connection: 57 mm
Standard connection for valve: ISO 5211
Mounting position: Any
Mode of operation: Double-acting
Structural design: Kinematic yoke system
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Connection point for positioner and position sensor conforms to: VDI/VDE 3845 Size AA 3
Safety function: The safety function consists of the actuator switching to the dened | safety switching position. This switching movement is achieved by | pressurizing the corresponding pressure chamber with compressed air. | The value of the torque generated depends on the pressure diﬀerence | between the two pressure chambers separated by the piston.
Safety integrity level (SIL): Up to SIL 2 low demand mode | up to SIL 3 in a redundant architecture
Certied for safety function to ISO 13849 and IEC 61508 (SIL): Product can be used in safety-related parts of control systems up to SIL | 2, low demand | up to SIL 3 in a redundant architecture
Burst pressure: 13.89 bar
Operating pressure: 0.3 MPa...0.46 MPa | 3 bar...4.6 bar | 43.5 psi...66.7 psi
Nominal operating pressure: 0.463 MPa | 4.63 bar | 67.135 psi
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
