Festo
8211839

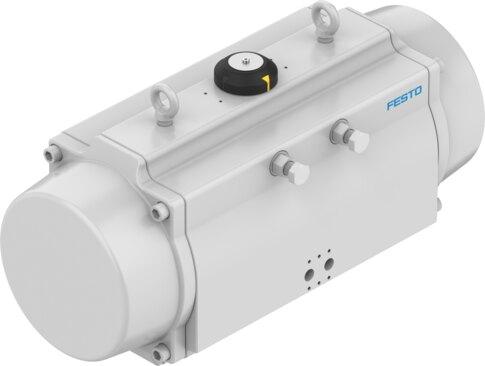

Quarter turn actuator DFPD-4500-RP-90-RD-F16
The Festo 8211839 industrial component is a double-acting gear rack and pinion valve actuator featuring a size of 4500, an F16 flange hole pattern, and a 90-degree swivel angle. It incorporates an ISO 5211 standard valve connection, VDI/VDE 3845 NAMUR compliance, and an adjustable end-position range of -5 to 5 degrees at both 0 degrees and the nominal swivel angle. Certified to ISO 13849 and IEC 61508 for safety functions up to SIL 2 in low demand mode and SIL 3 in redundant architecture, the unit operates between 2 bar and 5.2 bar with a 15.72 bar burst pressure and carries a CE marking per the EU explosion protection directive (ATEX). Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8211839
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8211839.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 4500
- Flange hole pattern
- F16
- Swivel angle
- 90 deg
- End-position adjusting range at 0°
- -5 deg...5 deg
- End-position adjusting range at nominal swivel angle
- -5 deg...5 deg
- Depth shaft connection
- 50 mm
- Standard connection for valve
- ISO 5211
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Gear rack/pinion
- Closing direction
- Closes to the right
- Valve connection conforms to standard
- VDI/VDE 3845 (NAMUR)
- Connection point for positioner and position sensor conforms to
- VDI/VDE 3845 Size AA 3
- Safety function
- The safety function consists of the actuator switching to the dened | safety switching position. This switching movement is achieved by | pressurizing the corresponding pressure chamber with compressed air. | The value of the torque generated depends on the pressure difference | between the two pressure chambers separated by the piston.
- Safety integrity level (SIL)
- Up to SIL 2 low demand mode | up to SIL 3 in a redundant architecture
- Certied for safety function to ISO 13849 and IEC 61508 (SIL)
- Product can be used in safety-related parts of control systems up to SIL | 2, low demand | up to SIL 3 in a redundant architecture
- Burst pressure
- 15.72 bar
- Operating pressure
- 0.2 MPa...0.52 MPa | 2 bar...5.2 bar | 29 psi...75.4 psi
- Nominal operating pressure
- 0.524 MPa | 5.24 bar | 75.98 psi
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
