Festo
8211879

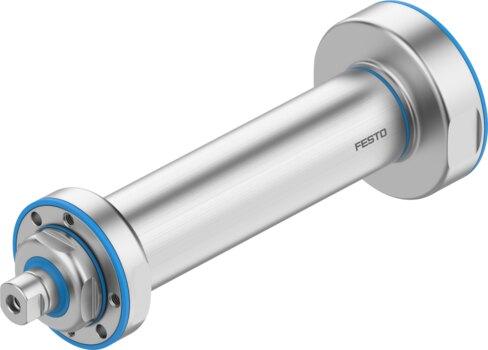

Electric cylinder EPRF-BS-36-50-8P-F-M1
The Festo 8211879 is an electric cylinder featuring a ball screw structural design with a size of 36, a 50 mm stroke, and an 8 mm screw diameter. Driven by a servo motor, this component achieves a spindle pitch of 8 mm/U, a maximum actuator speed of 4750 rpm, a maximum speed of 600 m/s, and a repetition accuracy of ±0.02 mm. It includes a plain bearing-guide for torsion protection, an internal thread piston rod end with an M6 thread, and operates in any mounting position without position sensing. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8211879
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8211879.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 36
- Stroke
- 50 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M6
- Reversing backlash
- 100 µm
- Screw diameter
- 8 mm
- Spindle pitch
- 8 mm/U
- Max. angle of rotation of the piston rod +/-
- 0.7 deg
- Mounting position
- Any
- Piston rod end
- Internal thread
- Motor type
- Servo motor
- Position sensing
- None
- Structural design
- Electric cylinder with ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. actuator speed
- 4750 rpm
- Max. acceleration
- 15 m/s²
- Max. speed
- 600 m/s
- Max. homing speed
- 0.01 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- Vibration resistance
- Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- For use in the food industry
- See declaration of conformity
- Relative air humidity
- 0 - 95% | Non-condensating
- Degree of protection
- IP69K
- Ambient temperature
- -10 °C...60 °C
