Festo
8211882

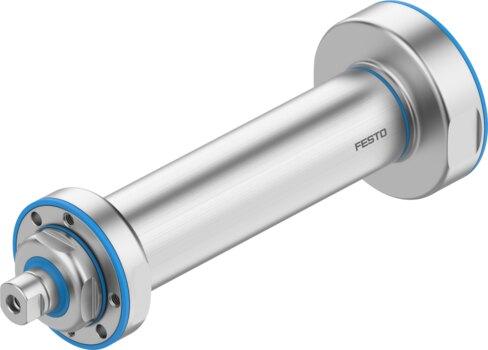

Electric cylinder EPRF-BS-36- -
The Festo part number 8211882 is an electric cylinder featuring a structural design with a ball screw, a size 36, and a stroke length ranging from 25 mm to 250 mm with 0 mm stroke reserve. This component utilizes a servo motor and incorporates an 8 mm screw diameter, an 8 mm/U spindle pitch, and both M8 and M6 piston rod threads with external and internal thread options. Featuring an integrated plain bearing-guide for torsion protection, it achieves a maximum actuator speed of 4750 rpm, a repetition accuracy of ±0.02 mm, and a reversing backlash of 100 å¦m. Submit the exact part number, quantity, and application requirements for an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8211882
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8211882.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 36
- Stroke
- 25 mm...250 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M8 | M6
- Reversing backlash
- 100 µm
- Screw diameter
- 8 mm
- Spindle pitch
- 8 mm/U
- Max. angle of rotation of the piston rod +/-
- 0.7 deg
- Mounting position
- Any
- Piston rod end
- External thread | Internal thread
- Motor type
- Servo motor
- Position sensing
- None
- Structural design
- Electric cylinder with ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. actuator speed
- 4750 rpm
- Max. acceleration
- 15 m/s²
- Max. speed
- 600 m/s
- Max. homing speed
- 0.01 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- Vibration resistance
- Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- For use in the food industry
- See declaration of conformity
- Relative air humidity
- 0 - 95% | Non-condensating
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8211882. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
