Name: Festo 8211883 Electric cylinder EPRF-BS-45-50-5P-F-M1
Brand: Festo

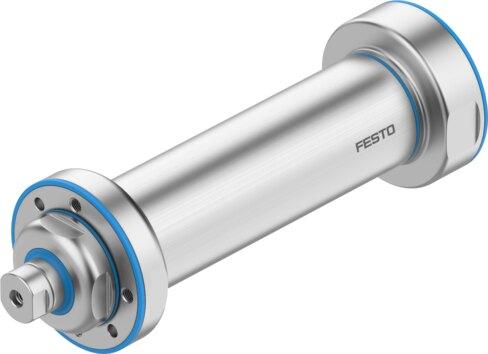

Electric cylinder EPRF-BS-45-50-5P-F-M1

The Festo 8211883 is an electric cylinder with a ball screw structural design, featuring a size 45 footprint, a 50 mm stroke, and zero stroke reserve. This component utilizes an internal M6 piston rod thread, a 12 mm screw diameter, a 5 mm/U spindle pitch, and an integrated plain bearing-guide limiting piston rod rotation to +/- 0.7 degrees with 100 µm of reversing backlash. Powered by a servo motor supporting a maximum actuator speed of 6000 rpm, a maximum acceleration of 5 m/s², a maximum speed of 500 m/s, and a maximum homing speed of 0.01 m/s, it delivers a repetition accuracy of ±0.02 mm across any mounting position without position sensing. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8211883
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8211883.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 45
Stroke: 50 mm
Stroke reserve: 0 mm
Piston rod thread: M6
Reversing backlash: 100 µm
Screw diameter: 12 mm
Spindle pitch: 5 mm/U
Max. angle of rotation of the piston rod +/-: 0.7 deg
Mounting position: Any
Piston rod end: Internal thread
Motor type: Servo motor
Position sensing: None
Structural design: Electric cylinder with ball screw
Spindle type: Ball screw
Protection against torsion/guide: With plain bearing-guide
Max. actuator speed: 6000 rpm
Max. acceleration: 5 m/s²
Max. speed: 500 m/s
Max. homing speed: 0.01 m/s
Repetition accuracy: ±0.02 mm
Duty cycle: 100%
Vibration resistance: Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC): 4 - Particularly high corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Storage temperature: -20 °C...60 °C
For use in the food industry: See declaration of conformity
Relative air humidity: 0 - 95% | Non-condensating
Degree of protection: IP69K
Ambient temperature: -10 °C...60 °C

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8211883. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
