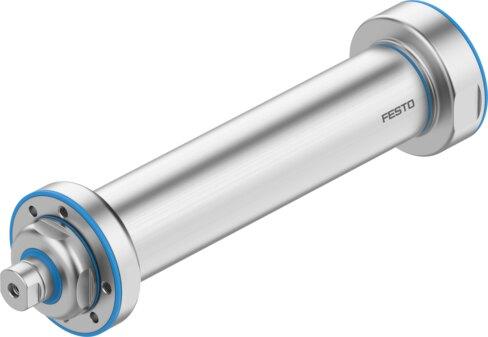

Reference imageConfirm configuration by manufacturer part number.
Festo
8211884
Electric cylinder EPRF-BS-45-100-5P-F-M1
The Festo 8211884 is an electric cylinder with a ball screw featuring a size 45 design, a 100 mm stroke, and a 0 mm stroke reserve. This component utilizes a 12 mm screw diameter with a 5 mm/U spindle pitch, an M6 internal thread piston rod end, and a plain bearing-guide providing a maximum piston rod angle of rotation of plus or minus 0.7 degrees and 100 µm reversing backlash. Driven by a servo motor supporting any mounting position, it achieves a maximum actuator speed of 6000 rpm, a maximum speed of 500 m/s, a maximum acceleration of 5 m/s², a maximum homing speed of 0.01 m/s, and a repetition accuracy of plus or minus 0.02 mm without position sensing. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8211884
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8211884.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 45
- Stroke
- 100 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M6
- Reversing backlash
- 100 µm
- Screw diameter
- 12 mm
- Spindle pitch
- 5 mm/U
- Max. angle of rotation of the piston rod +/-
- 0.7 deg
- Mounting position
- Any
- Piston rod end
- Internal thread
- Motor type
- Servo motor
- Position sensing
- None
- Structural design
- Electric cylinder with ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. actuator speed
- 6000 rpm
- Max. acceleration
- 5 m/s²
- Max. speed
- 500 m/s
- Max. homing speed
- 0.01 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- Vibration resistance
- Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- For use in the food industry
- See declaration of conformity
- Relative air humidity
- 0 - 95% | Non-condensating
- Degree of protection
- IP69K
- Ambient temperature
- -10 °C...60 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8211884. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
