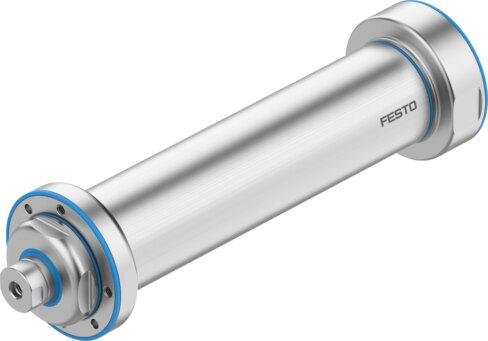

Name: Festo 8211888 Electric cylinder EPRF-BS-55-100-10P-F-M1
Brand: Festo

Electric cylinder EPRF-BS-55-100-10P-F-M1

The Festo 8211888 is an electric cylinder with a ball screw structural design featuring a size 55 profile and a 100 mm stroke with zero stroke reserve. This component incorporates an M8 internal thread piston rod end, a 16 mm screw diameter, a 10 mm/U spindle pitch, and an integrated plain bearing-guide maintaining a maximum piston rod angle of rotation of plus or minus 0.7 degrees with a 100 µm reversing backlash. Driven by a servo motor supporting any mounting position, the unit delivers a maximum actuator speed of 3000 rpm, a max speed of 500 m/s, a maximum acceleration of 15 m/s², a maximum homing speed of 0.01 m/s, and a repetition accuracy of ±0.02 mm without position sensing. Submit part number 8211888, quantity, and application requirements for an official quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8211888
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8211888.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 55
Stroke: 100 mm
Stroke reserve: 0 mm
Piston rod thread: M8
Reversing backlash: 100 µm
Screw diameter: 16 mm
Spindle pitch: 10 mm/U
Max. angle of rotation of the piston rod +/-: 0.7 deg
Mounting position: Any
Piston rod end: Internal thread
Motor type: Servo motor
Position sensing: None
Structural design: Electric cylinder with ball screw
Spindle type: Ball screw
Protection against torsion/guide: With plain bearing-guide
Max. actuator speed: 3000 rpm
Max. acceleration: 15 m/s²
Max. speed: 500 m/s
Max. homing speed: 0.01 m/s
Repetition accuracy: ±0.02 mm
Duty cycle: 100%
Vibration resistance: Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC): 4 - Particularly high corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Storage temperature: -20 °C...60 °C
For use in the food industry: See declaration of conformity
Relative air humidity: 0 - 95% | Non-condensating
Degree of protection: IP69K
Ambient temperature: -10 °C...60 °C
