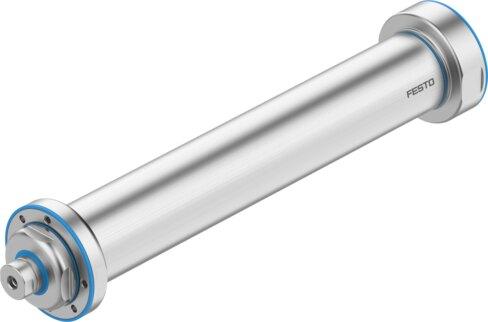

Reference imageConfirm configuration by manufacturer part number.
Festo
8211889
Electric cylinder EPRF-BS-55-200-10P-F-M1
The Festo size 55 electric cylinder with ball screw features a 200 mm stroke, 16 mm screw diameter, and 10 mm/U spindle pitch, driven by a servo motor with an internal thread piston rod end and M8 thread. This assembly incorporates a plain bearing-guide limiting piston rod rotation to +/- 0.7 degrees with a 100 µm reversing backlash, operating at a maximum actuator speed of 3000 rpm, 15 m/s² maximum acceleration, and ±0.02 mm repetition accuracy in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8211889
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8211889.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 55
- Stroke
- 200 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M8
- Reversing backlash
- 100 µm
- Screw diameter
- 16 mm
- Spindle pitch
- 10 mm/U
- Max. angle of rotation of the piston rod +/-
- 0.7 deg
- Mounting position
- Any
- Piston rod end
- Internal thread
- Motor type
- Servo motor
- Position sensing
- None
- Structural design
- Electric cylinder with ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. actuator speed
- 3000 rpm
- Max. acceleration
- 15 m/s²
- Max. speed
- 500 m/s
- Max. homing speed
- 0.01 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- Vibration resistance
- Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- For use in the food industry
- See declaration of conformity
- Relative air humidity
- 0 - 95% | Non-condensating
- Degree of protection
- IP69K
- Ambient temperature
- -10 °C...60 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8211889. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
