Festo
8211891

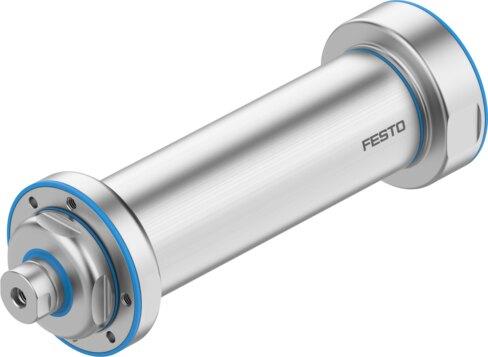

Electric cylinder EPRF-BS-55- -
The Festo 8211891 is an electric cylinder with a ball screw featuring a size 55 frame, a 16 mm screw diameter, and selectable spindle pitches ranging from 5 mm/U to 16 mm/U. This structural design incorporates a plain bearing-guide limiting the max angle of rotation of the piston rod to +/- 0.7 degrees, an M8 or M12x1.25 piston rod thread with external or internal ends, and a reversing backlash of 100 µm. Operational parameters include a stroke length between 25 mm and 800 mm with 0 mm stroke reserve, any mounting position, servo motor compatibility, no position sensing, and a repetition accuracy of ±0.02 mm. Additional performance metrics comprise a maximum actuator speed of 3000 rpm to 3750 rpm, max acceleration from 5 m/s² to 15 m/s², max speed of 250 m/s to 1000 m/s, and a max homing speed of 0.01 m/s. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8211891
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8211891.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 55
- Stroke
- 25 mm...800 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M8 | M12x1.25
- Reversing backlash
- 100 µm
- Screw diameter
- 16 mm
- Spindle pitch
- 5 mm/U...16 mm/U
- Max. angle of rotation of the piston rod +/-
- 0.7 deg
- Mounting position
- Any
- Piston rod end
- External thread | Internal thread
- Motor type
- Servo motor
- Position sensing
- None
- Structural design
- Electric cylinder with ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. actuator speed
- 3000 rpm...3750 rpm
- Max. acceleration
- 5 m/s²...15 m/s²
- Max. speed
- 250 m/s...1000 m/s
- Max. homing speed
- 0.01 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- Vibration resistance
- Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- For use in the food industry
- See declaration of conformity
- Relative air humidity
- 0 - 95% | Non-condensating
