Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

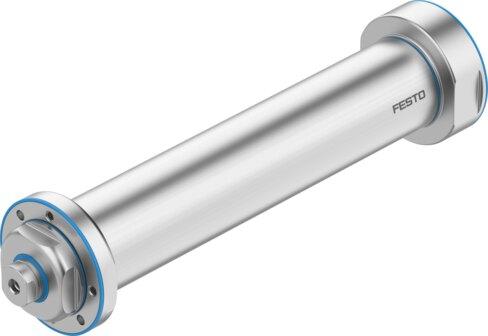

Reference imageConfirm configuration by manufacturer part number.
Festo
8211895
Electric cylinder EPRF-BS-75- -
The Festo part number 8211895 is an electric cylinder with a ball screw structural design featuring a size 75 profile and a stroke range from 50 mm to 1000 mm. This component integrates a plain bearing-guide providing a torsion protection mechanism, a 25 mm screw diameter, and selectable spindle pitches of 5 mm/U up to 25 mm/U. Powered by a servo motor with external or internal M16x1.5 and M10 piston rod threads, it achieves a repetition accuracy of ±0.02 mm, a reversing backlash of 100 µm, and an actuator speed reaching 2400 rpm to 3000 rpm. Submit your exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8211895
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8211895.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 75
- Stroke
- 50 mm...1000 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M16x1.5 | M10
- Reversing backlash
- 100 µm
- Screw diameter
- 25 mm
- Spindle pitch
- 5 mm/U...25 mm/U
- Max. angle of rotation of the piston rod +/-
- 0.5 deg
- Mounting position
- Any
- Piston rod end
- External thread | Internal thread
- Motor type
- Servo motor
- Position sensing
- None
- Structural design
- Electric cylinder with ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. actuator speed
- 2400 rpm...3000 rpm
- Max. acceleration
- 5 m/s²...15 m/s²
- Max. speed
- 250 m/s...1000 m/s
- Max. homing speed
- 0.01 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- Vibration resistance
- Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- For use in the food industry
- See declaration of conformity
- Relative air humidity
- 0 - 95% | Non-condensating
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8211895. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
