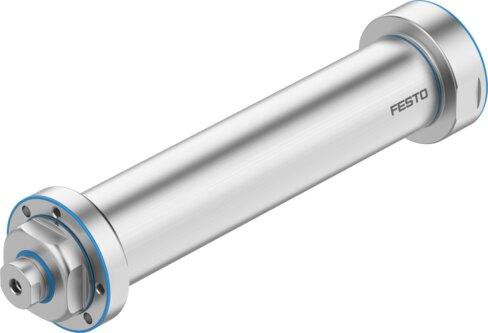

Name: Festo 8211896 Electric cylinder EPRF-BS-86-200-15P-F-M1
Brand: Festo

Electric cylinder EPRF-BS-86-200-15P-F-M1

The Festo 8211896 is an electric cylinder with a ball screw structural design, featuring a size of 86 and a 200 mm stroke with zero stroke reserve. This component utilizes a 32 mm screw diameter, a 15 mm/U spindle pitch, an M12 piston rod thread with an internal thread end, and an integrated plain bearing-guide providing a maximum piston rod angle of rotation of plus or minus 0.5 degrees and 100 µm reversing backlash. Designed for servo motor operation without position sensing in any mounting position, the unit achieves a maximum actuator speed of 2000 rpm, a maximum speed of 500 m/s, a maximum acceleration of 15 m/s², a maximum homing speed of 0.01 m/s, and a repetition accuracy of plus or minus 0.02 mm. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8211896
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8211896.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 86
Stroke: 200 mm
Stroke reserve: 0 mm
Piston rod thread: M12
Reversing backlash: 100 µm
Screw diameter: 32 mm
Spindle pitch: 15 mm/U
Max. angle of rotation of the piston rod +/-: 0.5 deg
Mounting position: Any
Piston rod end: Internal thread
Motor type: Servo motor
Position sensing: None
Structural design: Electric cylinder with ball screw
Spindle type: Ball screw
Protection against torsion/guide: With plain bearing-guide
Max. actuator speed: 2000 rpm
Max. acceleration: 15 m/s²
Max. speed: 500 m/s
Max. homing speed: 0.01 m/s
Repetition accuracy: ±0.02 mm
Duty cycle: 100%
Vibration resistance: Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC): 4 - Particularly high corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Storage temperature: -20 °C...60 °C
For use in the food industry: See declaration of conformity
Relative air humidity: 0 - 95% | Non-condensating
Degree of protection: IP69K
Ambient temperature: -10 °C...60 °C
