Festo
8211897

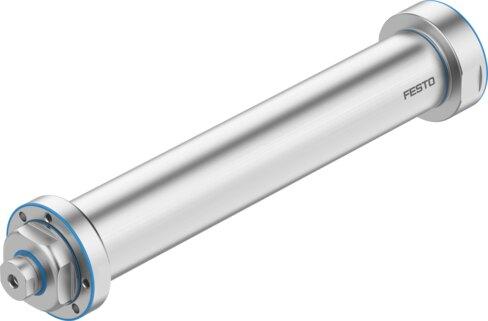

Electric cylinder EPRF-BS-86-300-15P-F-M1
The Festo 8211897 is an electric cylinder with a ball screw structural design featuring a size 86 profile, a 300 mm stroke, and a 15 mm/U spindle pitch. Driven by a servo motor, this component achieves a maximum actuator speed of 2000 rpm, a maximum speed of 500 m/s, a maximum acceleration of 15 m/s², and a repetition accuracy of ±0.02 mm with a reversing backlash of 100 µm. It includes a 32 mm screw diameter, an internal thread piston rod end with an M12 thread, zero stroke reserve, a piston rod rotational angle of ±0.5 degrees, a plain bearing-guide for torsion protection, and can be mounted in any position without position sensing. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8211897
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8211897.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 86
- Stroke
- 300 mm
- Stroke reserve
- 0 mm
- Piston rod thread
- M12
- Reversing backlash
- 100 µm
- Screw diameter
- 32 mm
- Spindle pitch
- 15 mm/U
- Max. angle of rotation of the piston rod +/-
- 0.5 deg
- Mounting position
- Any
- Piston rod end
- Internal thread
- Motor type
- Servo motor
- Position sensing
- None
- Structural design
- Electric cylinder with ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. actuator speed
- 2000 rpm
- Max. acceleration
- 15 m/s²
- Max. speed
- 500 m/s
- Max. homing speed
- 0.01 m/s
- Repetition accuracy
- ±0.02 mm
- Duty cycle
- 100%
- Vibration resistance
- Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- For use in the food industry
- See declaration of conformity
- Relative air humidity
- 0 - 95% | Non-condensating
- Degree of protection
- IP69K
- Ambient temperature
- -10 °C...60 °C
