Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8212638

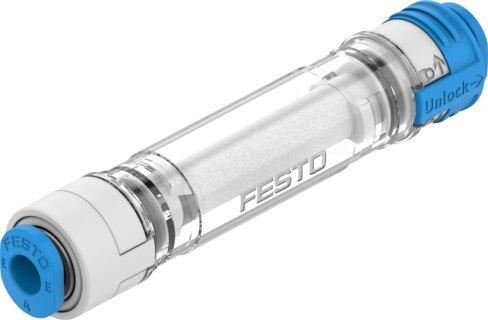

Inline filter OAFA-C-Q4-E-E
The Festo part number 8212638 is an industrial component featuring a 4 mm nominal width and an operating pressure range of -0.1 MPa to 1 MPa (-1 bar to 10 bar, -14.5 psi to 145 psi). Designed for in-line installation with pneumatic tubing having an outside diameter of 4 mm, it operates with air and incorporates a 40 µm grade of filtration with protective grounding. The unit features a PA housing with HNBR seals, a product weight of 5.4 g, an ambient temperature range of 0 °C to 60 °C, and is suitable for Li-ion battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8212638
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8212638.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 4 mm
- Application note
- The housing should not be cleaned with polar solvents (such as alcohol).
- Mounting position
- Any
- Grade of ltration
- 40 µm
- Operating pressure
- -0.1 MPa...1 MPa | -1 bar...10 bar | -14.5 psi...145 psi
- Operating medium
- Air
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 5.4 g
- Type of mounting
- In-line installation
- Pneumatic connection
- For pneumatic tubing outside diameter 4 mm
- Note on materials
- RoHS compliant
- Seals material
- HNBR
- Compressed air lter material
- Protective grounding
- Housing material
- PA
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8212638. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
