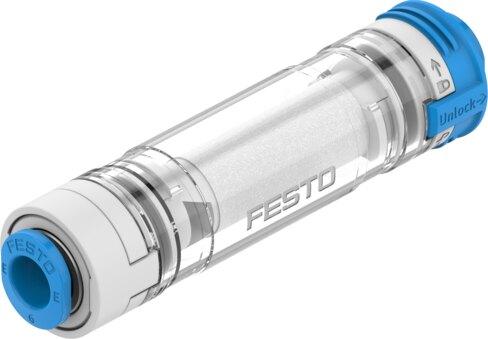

Name: Festo 8212641 Inline filter OAFA-C-Q6-E-E
Brand: Festo

Inline filter OAFA-C-Q6-E-E

The Festo part number 8212641 is a 6 mm nominal width industrial component featuring an in-line installation design with pneumatic connections for 6 mm outside diameter tubing and a product weight of 11 g. Operating within a pressure range of -0.1 MPa to 1 MPa (-1 bar to 10 bar, -14.5 psi to 145 psi) and an ambient temperature range of 0 °C to 60 °C, this unit processes air using a 40 µm grade of filtration and protective grounding compressed air filter material. The RoHS compliant construction includes a PA housing, HNBR seals, a CRC 1 low corrosion stress rating, VDMA24364 Zone III LABS conformity, and F1a suitability for Li-ion battery production with reduced Cu/Zn/Ni values, while requiring that the housing not be cleaned with polar solvents like alcohol in any mounting position. Submit the exact part number, quantity, and application requirements to receive an official quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8212641
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8212641.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 6 mm
Application note: The housing should not be cleaned with polar solvents (such as alcohol).
Mounting position: Any
Grade of ltration: 40 µm
Operating pressure: -0.1 MPa...1 MPa | -1 bar...10 bar | -14.5 psi...145 psi
Operating medium: Air
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature: 0 °C...60 °C
Product weight: 11 g
Type of mounting: In-line installation
Pneumatic connection: For pneumatic tubing outside diameter 6 mm
Note on materials: RoHS compliant
Seals material: HNBR
Compressed air lter material: Protective grounding
Housing material: PA

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8212641. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
