Festo
8212643

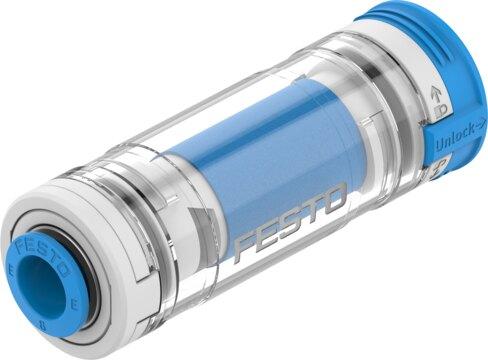

Inline filter OAFA-C-Q8-E-F
The Festo 8212643 is an industrial component featuring an 8 mm nominal width, 10 µm filtration grade, and compatibility with compressed air operating on pressures ranging from -0.1 MPa to 1 MPa (-1 bar to 10 bar, -14.5 psi to 145 psi). Constructed with a polyamide housing, HNBR seals, and a protective grounding compressed air filter, this RoHS-compliant part supports in-line installation for pneumatic tubing with an 8 mm outside diameter and is suitable for Li-ion battery production with reduced Cu/Zn/Ni values (F1a). The unit operates within an ambient temperature range of 0 µC to 60 µC, features a low corrosion stress resistance class (CRC 1) and VDMA24364 Zone III LABS conformity, and requires that the housing not be cleaned with polar solvents like alcohol. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8212643
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8212643.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 8 mm
- Application note
- The housing should not be cleaned with polar solvents (such as alcohol).
- Mounting position
- Any
- Grade of ltration
- 10 µm
- Operating pressure
- -0.1 MPa...1 MPa | -1 bar...10 bar | -14.5 psi...145 psi
- Operating medium
- Air
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 22.3 g
- Type of mounting
- In-line installation
- Pneumatic connection
- For pneumatic tubing outside diameter 8 mm
- Note on materials
- RoHS compliant
- Seals material
- HNBR
- Compressed air lter material
- Protective grounding
- Housing material
- PA
