Festo
8213222

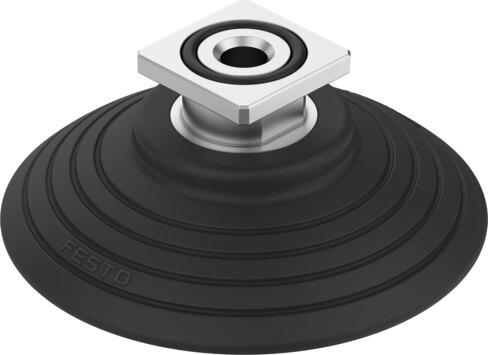

Suction cup with connection OGVM-100-S-N-RA
The Festo part number 8213222 is a round, flat industrial component featuring a 100 mm suction cup diameter, a 68 cm³ suction cup volume, and 9.5 mm of height compensation with an upward connection position. This black component operates at pressures ranging from -95 kPa to 0 kPa, delivering a holding force of 351 N and a lateral force of 140 N at a nominal operating pressure of -60 kPa. Designed for any mounting position via its rectangular adapter RA vacuum connection, it weighs 96 g, withstands ambient temperatures between -20 °C and 80 °C, and provides CRC 2 moderate corrosion stress resistance with VDMA24364-A1/A2-L LABS conformity for atmospheric air per ISO 8573-1:2010 [7:-:-]. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8213222
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8213222.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 9.5 mm
- Min. workpiece radius
- 100 mm
- Nominal width
- 8 mm
- Suction cup diameter
- 100 mm
- Suction cup volume
- 68 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round, at
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -60 kPa | -0.6 bar | -8.7 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1/A2-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 351 N
- Lateral force at nominal operating pressure
- 140 N
- Product weight
- 96 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Rectangular adapter RA
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8213222. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
