Festo
8213223

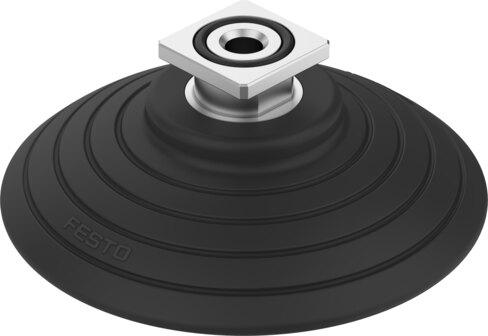

Suction cup with connection OGVM-125-S-N-RA
The Festo part number 8213223 is a round, flat industrial component featuring a 125 mm suction cup diameter, a 12.5 mm height compensation, and a nominal width of 8 mm with an upward connection position. Engineered for any mounting position via its rectangular adapter vacuum connection, this 159 g black part operates within a -95 kPa to 0 kPa pressure range and delivers a holding force of 606 N alongside a lateral force of 429 N at a nominal operating pressure of -60 kPa. It provides a suction cup volume of 132 cm3, a minimum workpiece radius of 135 mm, moderate corrosion resistance class 2, and compatibility with atmospheric air media under ambient temperatures from -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8213223
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8213223.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 12.5 mm
- Min. workpiece radius
- 135 mm
- Nominal width
- 8 mm
- Suction cup diameter
- 125 mm
- Suction cup volume
- 132 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round, at
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -60 kPa | -0.6 bar | -8.7 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1/A2-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 606 N
- Lateral force at nominal operating pressure
- 429 N
- Product weight
- 159 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Rectangular adapter RA
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8213223. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
