Festo
8213225

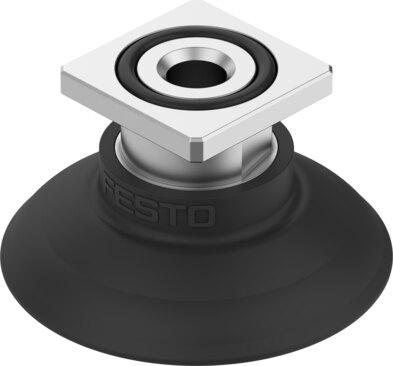

Suction cup with connection OGVM-60-G-N-RA
The Festo 8213225 round bell-shaped industrial component features a 60 mm suction cup diameter, a 10.6 mm height compensation, and a nominal width of 6 mm with a 22 cm³ suction cup volume. Operating within a pressure range of -95 kPa to 0 kPa and delivering a holding force of 143 N at a nominal operating pressure of -60 kPa, this 37 g black unit accommodates mounting via a rectangular adapter vacuum connection in any position. It provides moderate corrosion resistance (CRC 2), an ambient temperature range of -20 °C to 80 °C, and a lateral force of 216 N for atmospheric air applications conforming to ISO 8573-1:2010 [7:-:-]. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8213225
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8213225.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 10.6 mm
- Min. workpiece radius
- 27.5 mm
- Nominal width
- 6 mm
- Suction cup diameter
- 60 mm
- Suction cup volume
- 22 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round bell-shaped
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -60 kPa | -0.6 bar | -8.7 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1/A2-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 143 N
- Lateral force at nominal operating pressure
- 216 N
- Product weight
- 37 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Rectangular adapter RA
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8213225. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
