Festo
8213253

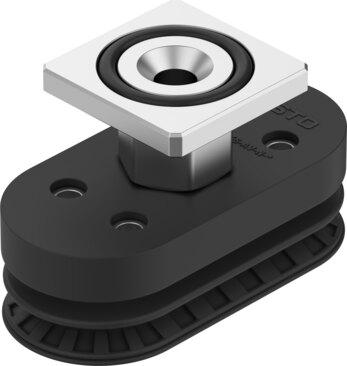

Suction cup with connection OGVM-30X65-AV-N-RA
The Festo 30x65 mm oval protective bellows 1.5-fold industrial component features a nominal width of 6 mm, a 7 mm suction cup height compensation, and a suction cup volume of 11.5 cm³, providing a holding force of 66 N and a vertical lateral force of 104 N at a nominal operating pressure of -60 kPa. Operating within a -20 °C to 80 °C ambient temperature range and a -95 kPa to 0 kPa operating pressure range, this 56 g black unit includes an upward connection position with a rectangular adapter RA vacuum connection and achieves a CRC 2 moderate corrosion stress rating. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8213253
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8213253.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 7 mm
- Min. workpiece radius
- 15 mm
- Nominal width
- 6 mm
- Vacuum cup size
- 30x65 mm
- Suction cup volume
- 11.5 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- oval protective bellows 1.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -60 kPa | -0.6 bar | -8.7 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1/A2-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 66 N
- Vertical lateral force at nominal operating pressure
- 104 N
- Product weight
- 56 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Rectangular adapter RA
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8213253. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
