Festo
8213364

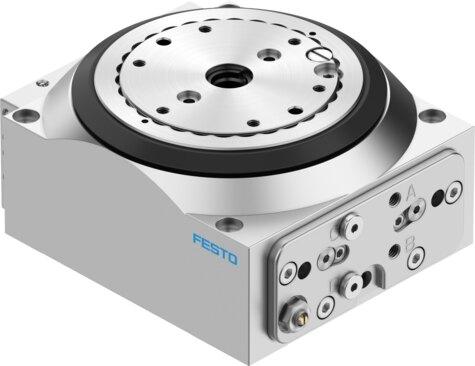

Rotary indexing table DHTG-65-2-A-L
The Festo industrial component, part number 8213364, is a size 65 double-acting device featuring a gear coupling, gear rack/pinion, and positively driven motion sequence with an anticlockwise direction of rotation. It operates at a pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) using compressed air as per ISO 8573-1:2010 [7:4:4] with position sensing for inductive sensors and adjustable pneumatic shock absorber cushioning with a hard characteristic curve. The unit achieves a plate parallelism of 0.04 mm, axial eccentricity and concentricity of 0.02 mm, and a swivel angle repetition accuracy of 0.03 degrees while maintaining an IP54 degree of protection and CRC 2 moderate corrosion resistance. Submit the exact part number, quantity, and application requirements for an immediate quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8213364
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8213364.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 65
- Parallelism of plate
- 0.04 mm
- Axial eccentricity of plate
- 0.02 mm
- Plate concentricity
- 0.02 mm
- Repetition accuracy of swivel angle
- 0.03 deg
- Direction of rotation
- Anticlockwise
- Cushioning
- Pneumatic shock absorber, hard characteristic curve, adjustable
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Gear coupling | Gear rack/pinion | Positively driven motion sequence
- Position sensing
- For inductive sensors
- Spacing
- 2
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -20 °C...80 °C
- Noise level
- 70 dB(A)
- Degree of protection
- IP54
- Ambient temperature
- 5 °C...60 °C
- Mass moment of inertia
- 160 kgcm²
- Max. axial force static
- 1000 N
- Max. pull-out torque static
- 100 Nm
- Max. radial force static
- 2000 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8213364. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
