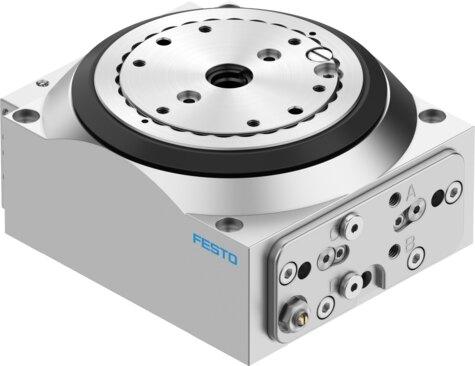

Name: Festo 8213367 Rotary indexing table DHTG-65-6-A-L
Brand: Festo

Rotary indexing table DHTG-65-6-A-L

The Festo industrial component, part number 8213367, operates in a double-acting mode utilizing a gear coupling, gear rack/pinion, and positively driven motion sequence with an anticlockwise direction of rotation. This size 65 unit features a plate parallelism of 0.04 mm, axial eccentricity of 0.02 mm, plate concentricity of 0.02 mm, repetition accuracy of swivel angle of 0.03 deg, and adjustable pneumatic shock absorber cushioning with a hard characteristic curve. It functions within an operating pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) using compressed air as per ISO 8573-1:2010 [7:4:4], and includes position sensing for inductive sensors along with a corrosion resistance class of CRC 2. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8213367
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8213367.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 65
Parallelism of plate: 0.04 mm
Axial eccentricity of plate: 0.02 mm
Plate concentricity: 0.02 mm
Repetition accuracy of swivel angle: 0.03 deg
Direction of rotation: Anticlockwise
Cushioning: Pneumatic shock absorber, hard characteristic curve, adjustable
Mounting position: Any
Mode of operation: Double-acting
Structural design: Gear coupling | Gear rack/pinion | Positively driven motion sequence
Position sensing: For inductive sensors
Spacing: 6
Operating pressure: 0.3 MPa...0.8 MPa | 3 bar...8 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Storage temperature: -20 °C...80 °C
Noise level: 70 dB(A)
Degree of protection: IP54
Ambient temperature: 5 °C...60 °C
Mass moment of inertia: 160 kgcm²
Max. axial force static: 1000 N
Max. pull-out torque static: 100 Nm
Max. radial force static: 2000 N

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8213367. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
