Festo
8213383

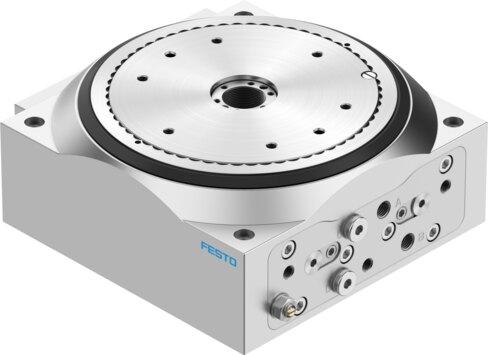

Rotary indexing table DHTG-140-24-A-L
The Festo 8213383 is a double-acting industrial component of size 140 utilizing a gear rack/pinion and gear coupling structural design for positively driven motion sequences with an anticlockwise direction of rotation. It operates at pressures from 0.3 MPa to 0.8 MPa (3 bar to 8 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], featuring adjustable pneumatic shock absorber cushioning with a hard characteristic curve, a 70 dB(A) noise level, and IP54 protection. Precision metrics include a plate parallelism of 0.04 mm, axial eccentricity and concentricity of 0.02 mm, and a swivel angle repetition accuracy of 0.03 degrees, designed with position sensing for inductive sensors, a spacing of 24, and moderate corrosion resistance class (CRC) 2. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8213383
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8213383.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 140
- Parallelism of plate
- 0.04 mm
- Axial eccentricity of plate
- 0.02 mm
- Plate concentricity
- 0.02 mm
- Repetition accuracy of swivel angle
- 0.03 deg
- Direction of rotation
- Anticlockwise
- Cushioning
- Pneumatic shock absorber, hard characteristic curve, adjustable
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Gear coupling | Gear rack/pinion | Positively driven motion sequence
- Position sensing
- For inductive sensors
- Spacing
- 24
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -20 °C...80 °C
- Noise level
- 70 dB(A)
- Degree of protection
- IP54
- Ambient temperature
- 5 °C...60 °C
- Mass moment of inertia
- 3000 kgcm²
- Max. axial force static
- 4000 N
- Max. pull-out torque static
- 300 Nm
- Max. radial force static
- 6000 N
