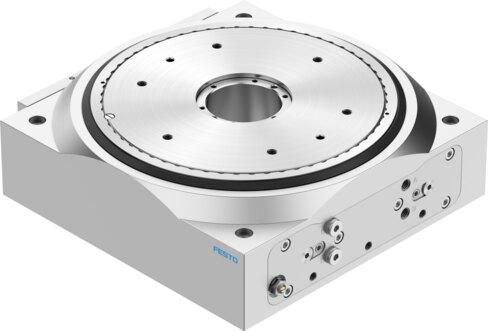

Reference imageConfirm configuration by manufacturer part number.
Festo
8213384
Rotary indexing table DHTG-220-3-A-L
Engineered with a gear coupling, gear rack and pinion, and positively driven motion sequence, this double-acting industrial component from Festo features a size 220 design with an anticlockwise direction of rotation and adjustable pneumatic shock absorber cushioning with a hard characteristic curve. The unit operates on compressed air as per ISO 8573-1:2010 [7:4:4] within a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), incorporating position sensing for inductive sensors, a plate parallelism of 0.04 mm, an axial eccentricity and concentricity of 0.02 mm, and a swivel angle repetition accuracy of 0.03 degrees. Constructed with a moderate corrosion stress rating (CRC 2) and IP54 protection, the assembly supports any mounting position, oil-lubricated operation, and a storage temperature range from -20 °C to 80 °C while maintaining a 70 dB(A) noise level. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8213384
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8213384.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 220
- Parallelism of plate
- 0.04 mm
- Axial eccentricity of plate
- 0.02 mm
- Plate concentricity
- 0.02 mm
- Repetition accuracy of swivel angle
- 0.03 deg
- Direction of rotation
- Anticlockwise
- Cushioning
- Pneumatic shock absorber, hard characteristic curve, adjustable
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Gear coupling | Gear rack/pinion | Positively driven motion sequence
- Position sensing
- For inductive sensors
- Spacing
- 3
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -20 °C...80 °C
- Noise level
- 70 dB(A)
- Degree of protection
- IP54
- Ambient temperature
- 5 °C...60 °C
- Mass moment of inertia
- 25000 kgcm²
- Max. axial force static
- 5000 N
- Max. pull-out torque static
- 500 Nm
- Max. radial force static
- 8000 N
