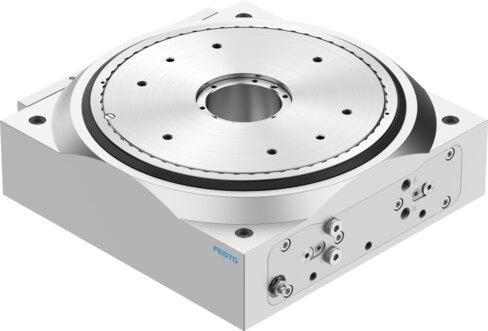

Reference imageConfirm configuration by manufacturer part number.
Festo
8213385
Rotary indexing table DHTG-220-4-A-L
Festo Rotary indexing table DHTG-220-4-A-L, part number 8213385, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 8213385
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8213385.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Size
- 220
- Parallelism of plate
- 0.04 mm
- Axial eccentricity of plate
- 0.02 mm
- Plate concentricity
- 0.02 mm
- Repetition accuracy of swivel angle
- 0.03 deg
- Direction of rotation
- Anticlockwise
- Cushioning
- Pneumatic shock absorber, hard characteristic curve, adjustable
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Gear coupling | Gear rack/pinion | Positively driven motion sequence
- Position sensing
- For inductive sensors
- Spacing
- 4
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -20 °C...80 °C
- Noise level
- 70 dB(A)
- Degree of protection
- IP54
- Ambient temperature
- 5 °C...60 °C
- Mass moment of inertia
- 25000 kgcm²
- Max. axial force static
- 5000 N
- Max. pull-out torque static
- 500 Nm
- Max. radial force static
- 8000 N
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8213385. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
