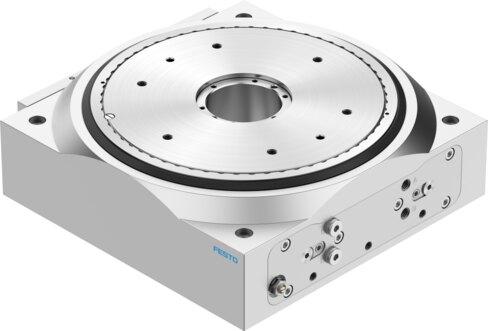

Reference imageConfirm configuration by manufacturer part number.
Festo
8213386
Rotary indexing table DHTG-220-6-A-L
The Festo 8213386 is a double-acting industrial component utilizing a gear coupling, gear rack/pinion, and positively driven motion sequence with an anticlockwise direction of rotation and size 220 specification. Operating at 3 bar to 8 bar (0.3 MPa to 0.8 MPa) using compressed air conforming to ISO 8573-1:2010 [7:4:4], this unit features adjustable pneumatic shock absorber cushioning with a hard characteristic curve, position sensing for inductive sensors, and a repetition accuracy of swivel angle of 0.03 degrees. It achieves a plate parallelism of 0.04 mm, axial eccentricity of 0.02 mm, plate concentricity of 0.02 mm, a noise level of 70 dB(A), an IP54 degree of protection, and moderate corrosion stress resistance (CRC 2) while operating across any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8213386
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8213386.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 220
- Parallelism of plate
- 0.04 mm
- Axial eccentricity of plate
- 0.02 mm
- Plate concentricity
- 0.02 mm
- Repetition accuracy of swivel angle
- 0.03 deg
- Direction of rotation
- Anticlockwise
- Cushioning
- Pneumatic shock absorber, hard characteristic curve, adjustable
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Gear coupling | Gear rack/pinion | Positively driven motion sequence
- Position sensing
- For inductive sensors
- Spacing
- 6
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -20 °C...80 °C
- Noise level
- 70 dB(A)
- Degree of protection
- IP54
- Ambient temperature
- 5 °C...60 °C
- Mass moment of inertia
- 25000 kgcm²
- Max. axial force static
- 5000 N
- Max. pull-out torque static
- 500 Nm
- Max. radial force static
- 8000 N
