Festo
8213836

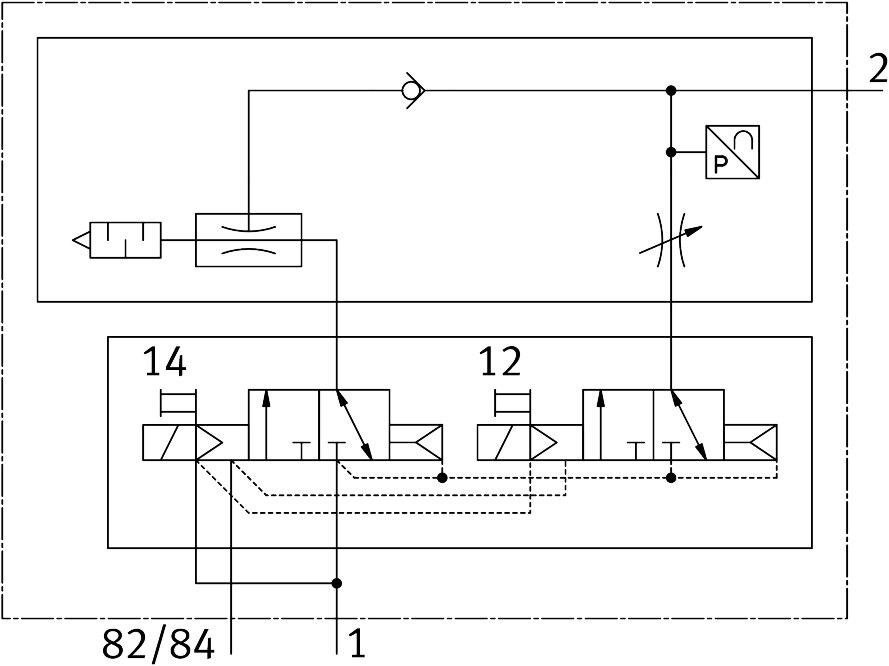

Manifold sub-base for vacuum VABX-A-S-VE-BH-VB010H
Engineered by Festo, part number 8213836 is an industrial component featuring a 12.5 mm width, a 150.8 mm length, a 0.95 mm nominal width Laval nozzle, a 12.55 mm width dimension, and a 10 mm valve size. This electrically actuated unit operates with a piloted control type, internal pilot air supply port, soft sealing principle, open muffler construction type, and a 2x3/2 closed monostable valve function. Integrated functions comprise an electric ejector pulse, electric ejector pulse valve, flow control valve, pressure sensor, pressure transmitter, electric on-off valve, electric air-saving function, check valve, open muffler, and an electrical interlinking module, supported by reverse polarity protection, a slotted screw adjusting element, and internal communication diagnostics for load switch-off, electronics/sensors overvoltage, and electronics/sensors undervoltage. Designed with high vacuum ejector characteristics, it supports any mounting position and meets severity level 2 vibration and shock resistance standards per FN 942017-4, FN 942017-5, EN 60068-2-6, and EN 60068-2-27. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8213836
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8213836.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 12.5 mm | 12 mm
- Length
- 150.8 mm
- Nominal width of Laval nozzle
- 0.95 mm
- Width dimension
- 12.55 mm
- Valve size
- 10 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Muffler construction type
- Open
- Actuation type
- Electrical
- Reverse polarity protection
- Yes
- Sealing principle
- Soft
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Adjusting element
- Slotted screw
- Diagnose per internal communication
- Load switch-off | Electronics/sensors overvoltage | Electronics/sensors undervoltage
- Max. no. of valve positions
- 1
- Integrated function
- Ejector pulse, electric | Ejector pulse valve, electric | Flow control valve | Pressure sensor | Pressure transmitter | Electric on-off valve | Electric air-saving function | Check valve | Muffler open | With electrical interlinking module
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Valve function
- 2x3/2 closed, monostable
- Max. no. of solenoid coils
- 2
- Display type
- LED
