Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

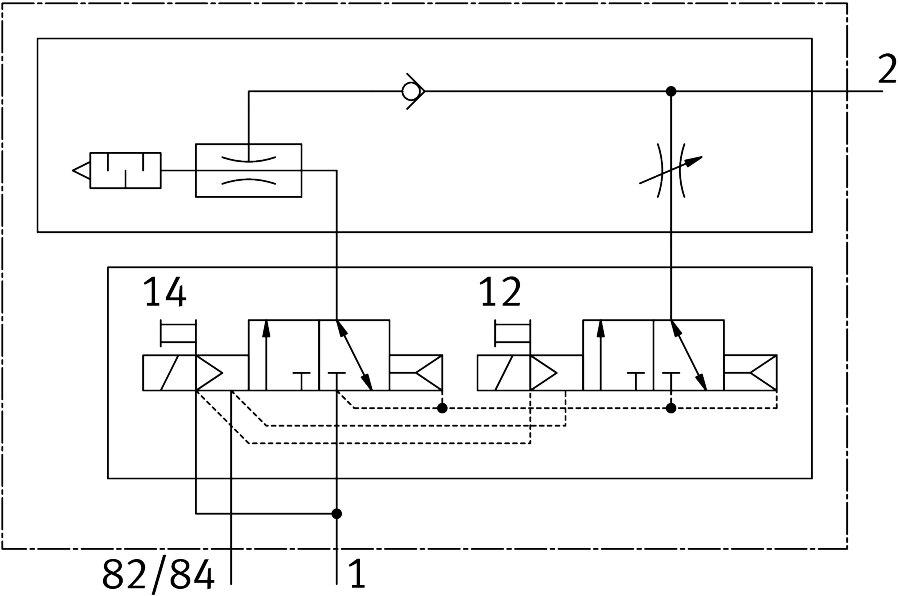

Reference imageConfirm configuration by manufacturer part number.
Festo
8213837
Manifold sub-base for vacuum VABX-A-P-VE-BH-VB010H
The Festo 8213837 is an electrical industrial component measuring 150.8 mm in length, 12.55 mm in width, with a 10 mm valve size and a 0.95 mm nominal width Laval nozzle featuring high vacuum ejector characteristics. Designed with a piloted 2x3/2 closed monostable valve function, internal pilot air supply port, soft sealing principle, open muffler construction type, and slotted screw adjusting element, this unit includes integrated electric ejector pulse, ejector pulse valve, flow control valve, electric on-off valve, check valve, open muffler, and an electrical interlinking module while providing reverse polarity protection, compatibility with the valve manifold VTUX-A-P, any mounting position, up to 2 solenoid coils, and 1 max. valve position that meets vibration resistance transport application test severity level 2 as per FN 942017-4 and EN 60068-2-6 as well as shock test severity level 2 as per FN 942017-5 and EN 60068-2-27. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8213837
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8213837.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Length
- 150.8 mm
- Nominal width of Laval nozzle
- 0.95 mm
- Width dimension
- 12.55 mm
- Valve size
- 10 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Muffler construction type
- Open
- Actuation type
- Electrical
- Reverse polarity protection
- Yes
- Sealing principle
- Soft
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Adjusting element
- Slotted screw
- Max. no. of valve positions
- 1
- Integrated function
- Ejector pulse, electric | Ejector pulse valve, electric | Flow control valve | Electric on-off valve | Check valve | Muffler open | With electrical interlinking module
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Valve function
- 2x3/2 closed, monostable
- Max. no. of solenoid coils
- 2
- Compatible with
- Valve manifold VTUX-A-P
- Display type
- LED
- Signal status display
- Yellow LED, valve actuation
- Operating pressure for max. suction rate
- 0.4 MPa | 4 bar | 58 psi
- Operating pressure
- 0.2 MPa...0.7 MPa | 2 bar...7 bar
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8213837. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
