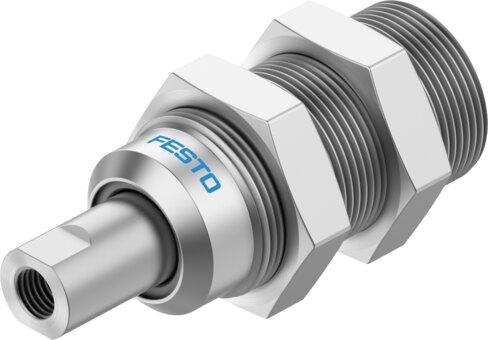

Name: Festo 8214722 Length compensator VAL-M5-5-F1A
Brand: Festo

Length compensator VAL-M5-5-F1A

This Festo industrial component features a 5 mm suction cup holder height compensator, M16x1 external thread mounting, and M5 internal threads for both vacuum connection and suction cup mounting. Built with an aluminum housing, NBR seals, and a retainer bracket of aluminum, POM, and high-alloy stainless steel, the unit operates within a -0.95 bar to 8 bar pressure range and -10 °C to 60 °C ambient temperature. It accommodates any mounting position, utilizes compressed air per ISO 8573-1:2010 [7:-:-], carries a Corrosion Resistance Class of 2, and meets VDMA24364-B1/B2-L LABS conformity with reduced Cu/Zn/Ni values for Li-ion battery production. Submit part number 8214722 with your required quantity and application details to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8214722
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8214722.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Suction cup holder height compensator: 5 mm
Mounting position: Any
Structural design: Vacuum connection at top
Operating pressure: -0.95 bar...8 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature: -10 °C...60 °C
Product weight: 25 g
Type of mounting: With external thread M16x1
Suction cup mounting: Internal thread M5
Vacuum connection: Internal thread M5
Note on materials: RoHS compliant
Seals material: NBR
Housing material: Aluminum
Retainer bracket material: Aluminum | POM | high-alloy stainless steel
