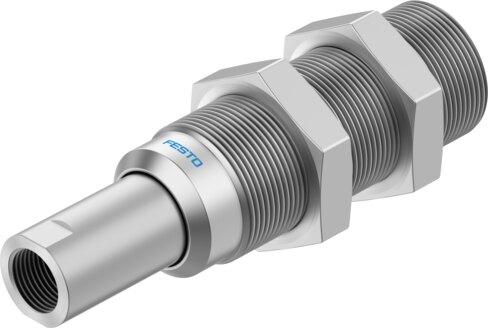

Name: Festo 8214724 Length compensator VAL-1/4-20-F1A
Brand: Festo

Length compensator VAL-1/4-20-F1A

The Festo industrial component, part number 8214724, is an aluminum housing assembly featuring a 20 mm suction cup holder height compensator, M26x1.5 external thread mounting, and G1/4 internal threads for both suction cup mounting and the top vacuum connection. It operates within a -0.95 bar to 8 bar pressure range and -10 °C to 60 °C ambient temperatures using compressed air conforming to ISO 8573-1:2010 [7:-:-]. Built with NBR seals, a retainer bracket of aluminum, POM, and high-alloy stainless steel, this RoHS-compliant unit offers CRC 2 moderate corrosion resistance, VDMA24364-B1/B2-L LABS conformity, and F1a suitability for Li-ion battery production with a total weight of 118 g in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8214724
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8214724.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Suction cup holder height compensator: 20 mm
Mounting position: Any
Structural design: Vacuum connection at top
Operating pressure: -0.95 bar...8 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature: -10 °C...60 °C
Product weight: 118 g
Type of mounting: With external thread M26x1.5
Suction cup mounting: Internal thread G1/4
Vacuum connection: Internal thread G1/4
Note on materials: RoHS compliant
Seals material: NBR
Housing material: Aluminum
Retainer bracket material: Aluminum | POM | high-alloy stainless steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8214724. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
