Festo
8215343
Servo motor EMMH-AS-68-MA-HS-S1MB-T
The Festo part number 8215343 is an industrial component adhering to IEC 60034 standards, featuring a thermal class F rating according to EN 60034-1, an S1 rating class, and digital motor temperature transmission via EnDat 2.2. It is configured for IM B14 and IM V18 motor types with any mounting position, an IP69K degree of protection, and a hybrid plug for electrical connection 1. Operating parameters include an ambient temperature range of -30 °C to 40 °C, extendable up to 80 °C with a -1.5% derating per degree Celsius, a maximum installation height of 3000 m, and a bearing lifetime of 20000 hours under nominal conditions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8215343
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8215343.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -30 °C...40 °C
- Note on ambient temperature
- Up to 80 °C with derating of -1.5% per degree Celsius
- Max. installation height
- 3000 m
- Information on max. installation height
- with 1,000 m and longer only with derating of -1.0% per 100 m
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 0 - 100%
- Conforms to standard
- IEC 60034
- Thermal class according to EN 60034-1
- F
- Max. winding temperature
- 155 °C
- Rating class according to EN 60034-1
- S1
- Temperature monitoring
- Digital motor temperature transmission via EnDat® 2.2
- Motor type as per EN 60034-7
- IM B14 | IM V18
- Mounting position
- Any
- Degree of protection
- IP69K
- Concentricity, coaxiality, axial runout according to DIN SPEC 42955
- N
- Balancing quality
- G 2.5
- Detent torque
- <1.0% of peak torque
- Bearing lifetime, under nominal conditions
- 20000 h
- Interface code, motor out
- 68C

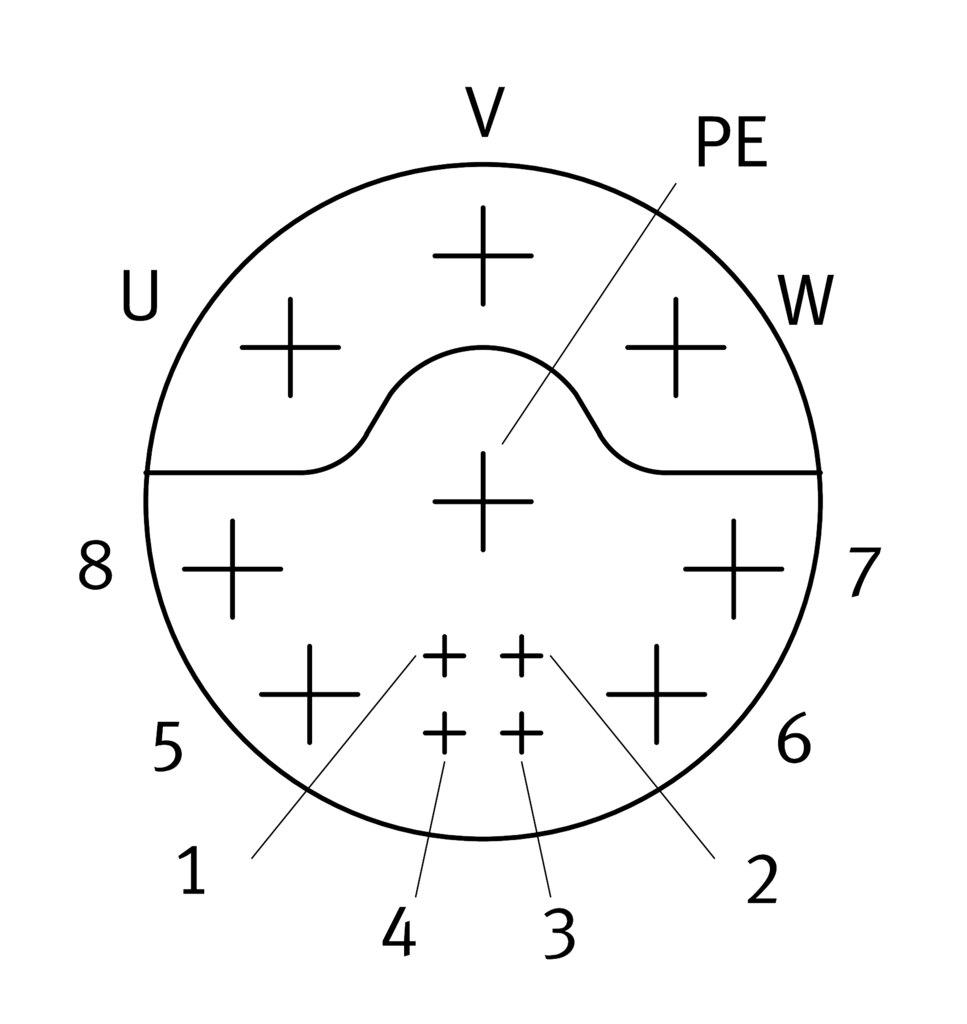

- Electrical connection 1, connection type
- Hybrid plug
- Electrical connection 1, connection technology
- M17x0.75
- Electrical connection 1, number of pins/wires
- 15
- Contamination level
- 2
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress | (except laser marking)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- Approved for direct food contact
- Vibration resistance
- as per EN 60068-2-6
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8215343. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
