Name: Festo 8215346 Servo motor EMMH-AS-68-HKA-HS-S1M-T
Brand: Festo

Servo motor EMMH-AS-68-HKA-HS-S1M-T

This Festo industrial component, part number 8215346, features an IP69K degree of protection, an S1 rating class according to EN 60034-1, and an EnDat® 2.2 interface for digital motor temperature transmission. Operating within an ambient temperature range of -30 °C to 40 °C (derating up to 80 °C) and up to an installation height of 3000 m, the unit conforms to IEC 60034 with thermal class F and balancing quality G 2.5. It utilizes a hybrid plug for electrical connection 1 and accommodates any mounting position in IM B14 or IM V18 motor types. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8215346
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8215346.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Ambient temperature: -30 °C...40 °C
Note on ambient temperature: Up to 80 °C with derating of -1.5% per degree Celsius
Max. installation height: 3000 m
Information on max. installation height: with 1,000 m and longer only with derating of -1.0% per 100 m
Storage temperature: -20 °C...70 °C
Relative air humidity: 0 - 100%
Conforms to standard: IEC 60034
Thermal class according to EN 60034-1: F
Max. winding temperature: 155 °C
Rating class according to EN 60034-1: S1
Temperature monitoring: Digital motor temperature transmission via EnDat® 2.2
Motor type as per EN 60034-7: IM B14 | IM V18
Mounting position: Any
Degree of protection: IP69K
Concentricity, coaxiality, axial runout according to DIN SPEC 42955: N
Balancing quality: G 2.5
Detent torque: <1.0% of peak torque
Bearing lifetime, under nominal conditions: 20000 h
Interface code, motor out: 68C

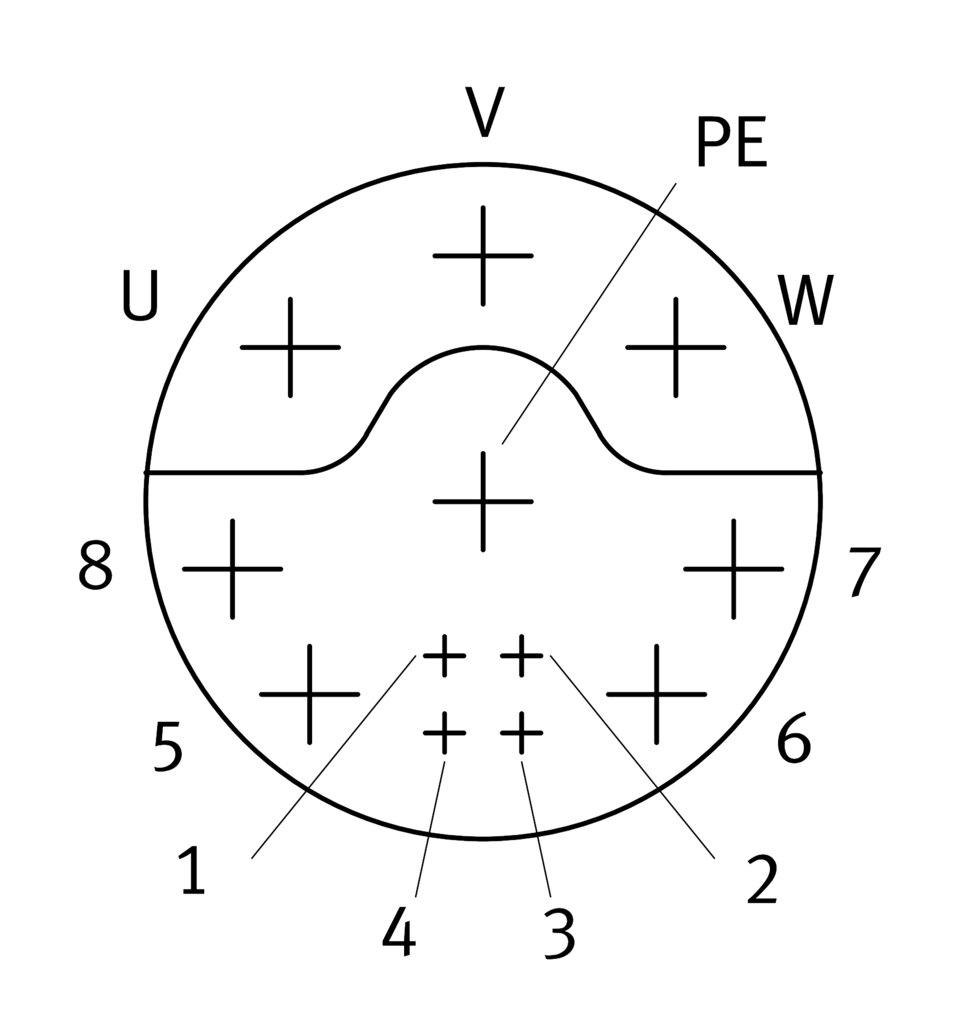

Electrical connection 1, connection type: Hybrid plug
Electrical connection 1, connection technology: M17x0.75
Electrical connection 1, number of pins/wires: 15
Contamination level: 2
Note on materials: RoHS compliant
Corrosion resistance class (CRC): 4 - Particularly high corrosion stress | (except laser marking)
LABS (PWIS) conformity: VDMA24364 Zone III
For use in the food industry: Approved for direct food contact
Vibration resistance: as per EN 60068-2-6
