Name: Festo 8215361 Servo motor EMMH-AS-108-HA-HS-S1M-T
Brand: Festo

Servo motor EMMH-AS-108-HA-HS-S1M-T

The Festo industrial component, part number 8215361, is an IEC 60034 compliant motor featuring Thermal Class F, S1 rating class, and digital motor temperature transmission via EnDat 2.2. It supports IM B14 and IM V18 motor types in any mounting position, offering an IP69K degree of protection, a hybrid plug electrical connection, and a detent torque under 1.0% of peak torque. Operating ambient temperatures range from -30 °C to 40 °C, extendable to 80 °C with a -2%/°C derating, while the installation height reaches up to 3000 m with specific derating above 1,000 m. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8215361
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8215361.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Ambient temperature: -30 °C...40 °C
Note on ambient temperature: up to 80°C with derating -2%/°C
Max. installation height: 3000 m
Information on max. installation height: with 1,000 m and longer only with derating of -1.0% per 100 m
Storage temperature: -20 °C...70 °C
Relative air humidity: 0 - 100%
Conforms to standard: IEC 60034
Thermal class according to EN 60034-1: F
Max. winding temperature: 155 °C
Rating class according to EN 60034-1: S1
Temperature monitoring: Digital motor temperature transmission via EnDat® 2.2
Motor type as per EN 60034-7: IM B14 | IM V18
Mounting position: Any
Degree of protection: IP69K
Concentricity, coaxiality, axial runout according to DIN SPEC 42955: N
Balancing quality: G 2.5
Detent torque: <1.0% of peak torque
Bearing lifetime, under nominal conditions: 20000 h
Interface code, motor out: 108C

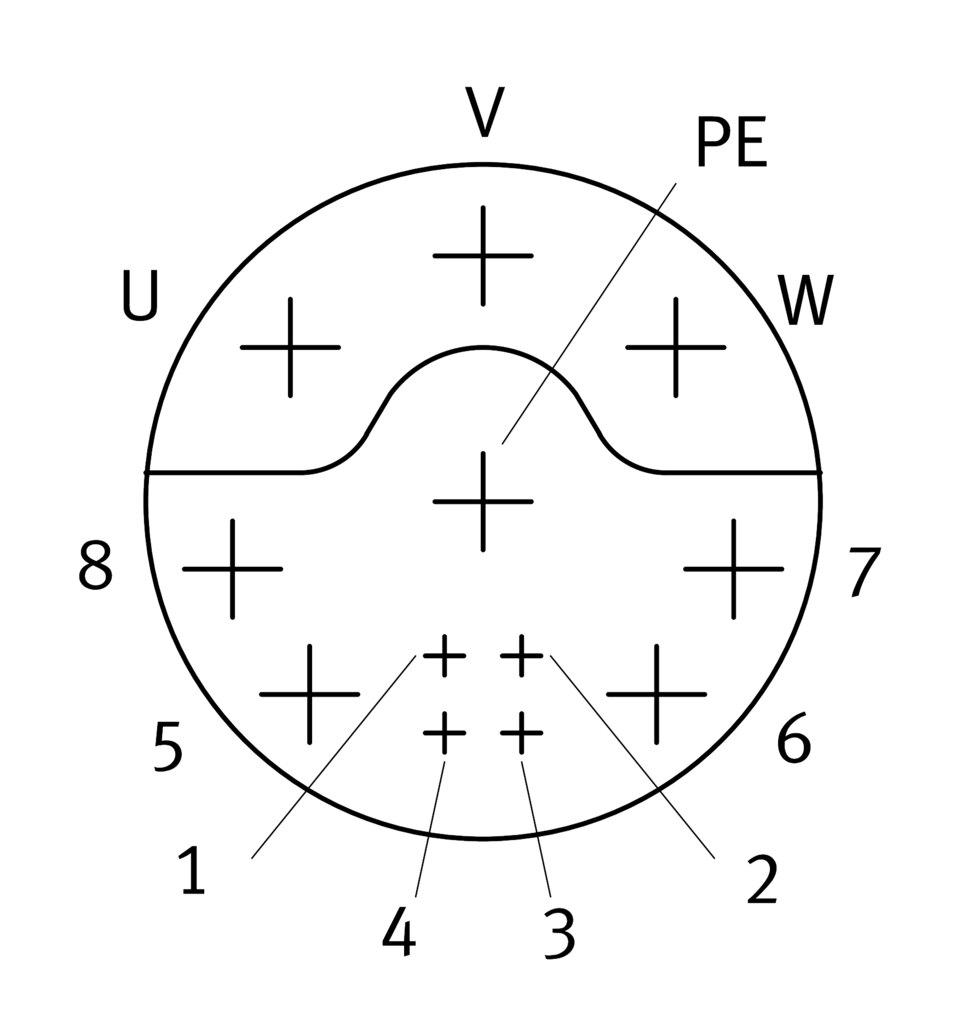

Electrical connection 1, connection type: Hybrid plug
Electrical connection 1, connection technology: M17x0.75
Electrical connection 1, number of pins/wires: 15
Contamination level: 2
Note on materials: RoHS compliant
Corrosion resistance class (CRC): 4 - Particularly high corrosion stress | (except laser marking)
LABS (PWIS) conformity: VDMA24364 Zone III
For use in the food industry: Approved for direct food contact
Vibration resistance: as per EN 60068-2-6
