8215365

Name: Festo 8215365 Servo motor EMMH-AS-138-MA-HS-S1M-T
Brand: Festo

Servo motor EMMH-AS-138-MA-HS-S1M-T

The Festo industrial component, part number 8215365, conforms to IEC 60034 with an EN 60034-1 thermal class F, an EN 60034-1 rating class S1, and EnDat 2.2 digital motor temperature transmission. It features an IP69K degree of protection, a balancing quality of G 2.5, a detent torque under 1.0% of peak torque, and a hybrid plug electrical connection 1. The unit operates in ambient temperatures from -30 °C to 40 °C (up to 80 °C with a -2%/°C derating), supports storage temperatures between -20 °C and 70 °C, accommodates relative air humidity of 0 to 100%, and functions up to a 3000 m installation height with derating applied beyond 1,000 m. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8215365
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8215365.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Ambient temperature: -30 °C...40 °C
Note on ambient temperature: up to 80°C with derating -2%/°C
Max. installation height: 3000 m
Information on max. installation height: with 1,000 m and longer only with derating of -1.0% per 100 m
Storage temperature: -20 °C...70 °C
Relative air humidity: 0 - 100%
Conforms to standard: IEC 60034
Thermal class according to EN 60034-1: F
Max. winding temperature: 155 °C
Rating class according to EN 60034-1: S1
Temperature monitoring: Digital motor temperature transmission via EnDat® 2.2
Motor type as per EN 60034-7: IM B14 | IM V18
Mounting position: Any
Degree of protection: IP69K
Concentricity, coaxiality, axial runout according to DIN SPEC 42955: N
Balancing quality: G 2.5
Detent torque: <1.0% of peak torque
Bearing lifetime, under nominal conditions: 20000 h
Interface code, motor out: 138C

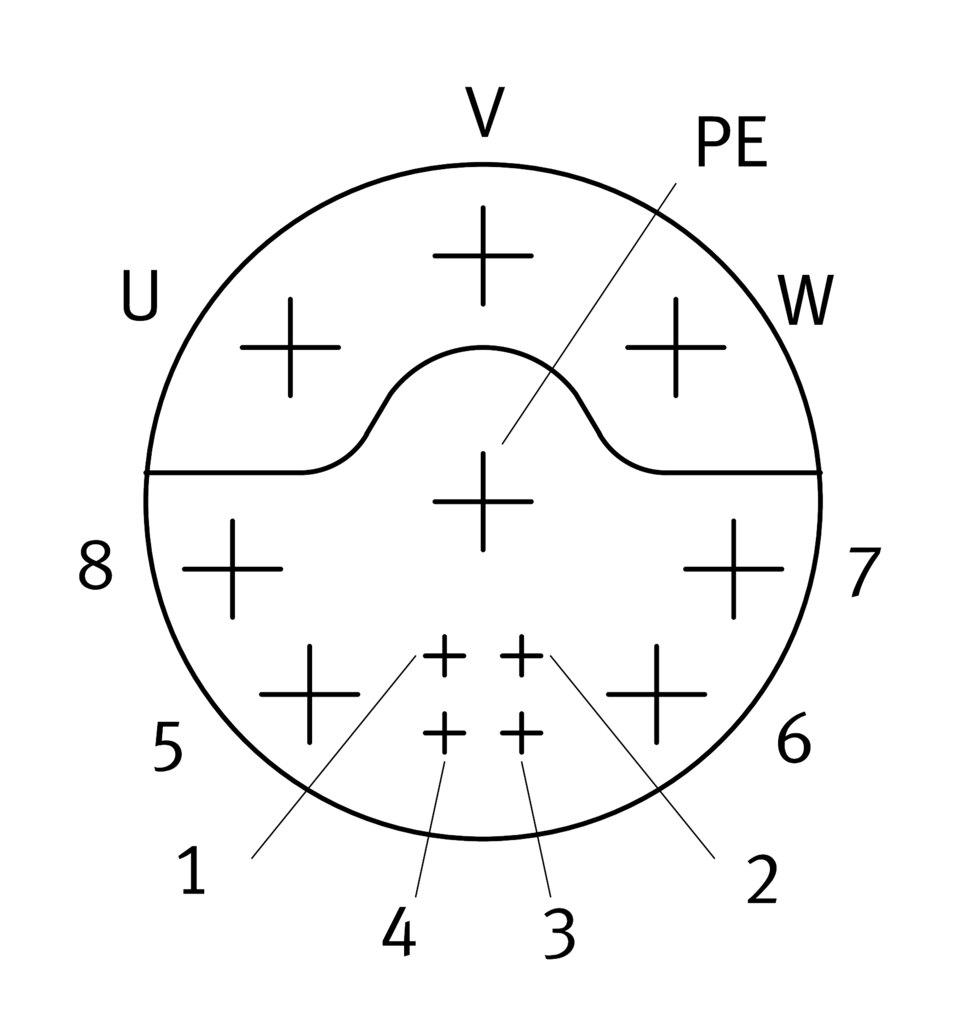

Electrical connection 1, connection type: Hybrid plug
Electrical connection 1, connection technology: M17x0.75
Electrical connection 1, number of pins/wires: 15
Contamination level: 2
Note on materials: RoHS compliant
Corrosion resistance class (CRC): 4 - Particularly high corrosion stress | (except laser marking)
LABS (PWIS) conformity: VDMA24364 Zone III
For use in the food industry: Approved for direct food contact
Vibration resistance: as per EN 60068-2-6

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8215365. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
