Festo
8215366
Servo motor EMMH-AS-138-MKA-HS-S1M-T
This Festo industrial component, part number 8215366, is built to IEC 60034 standards with a Thermal Class F rating, S1 rating class, and EnDat 2.2 digital motor temperature transmission. It features an IP69K degree of protection, IM B14 and IM V18 motor types according to EN 60034-7, a G 2.5 balancing quality, and a hybrid plug for electrical connection 1. Operating parameters include an ambient temperature range of -30 °C to 40 °C (extendable up to 80°C with a -2%/°C derating), a maximum installation height of 3000 m, and a bearing lifetime of 20000 hours under nominal conditions. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8215366
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8215366.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -30 °C...40 °C
- Note on ambient temperature
- up to 80°C with derating -2%/°C
- Max. installation height
- 3000 m
- Information on max. installation height
- with 1,000 m and longer only with derating of -1.0% per 100 m
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 0 - 100%
- Conforms to standard
- IEC 60034
- Thermal class according to EN 60034-1
- F
- Max. winding temperature
- 155 °C
- Rating class according to EN 60034-1
- S1
- Temperature monitoring
- Digital motor temperature transmission via EnDat® 2.2
- Motor type as per EN 60034-7
- IM B14 | IM V18
- Mounting position
- Any
- Degree of protection
- IP69K
- Concentricity, coaxiality, axial runout according to DIN SPEC 42955
- N
- Balancing quality
- G 2.5
- Detent torque
- <1.0% of peak torque
- Bearing lifetime, under nominal conditions
- 20000 h
- Interface code, motor out
- 138C

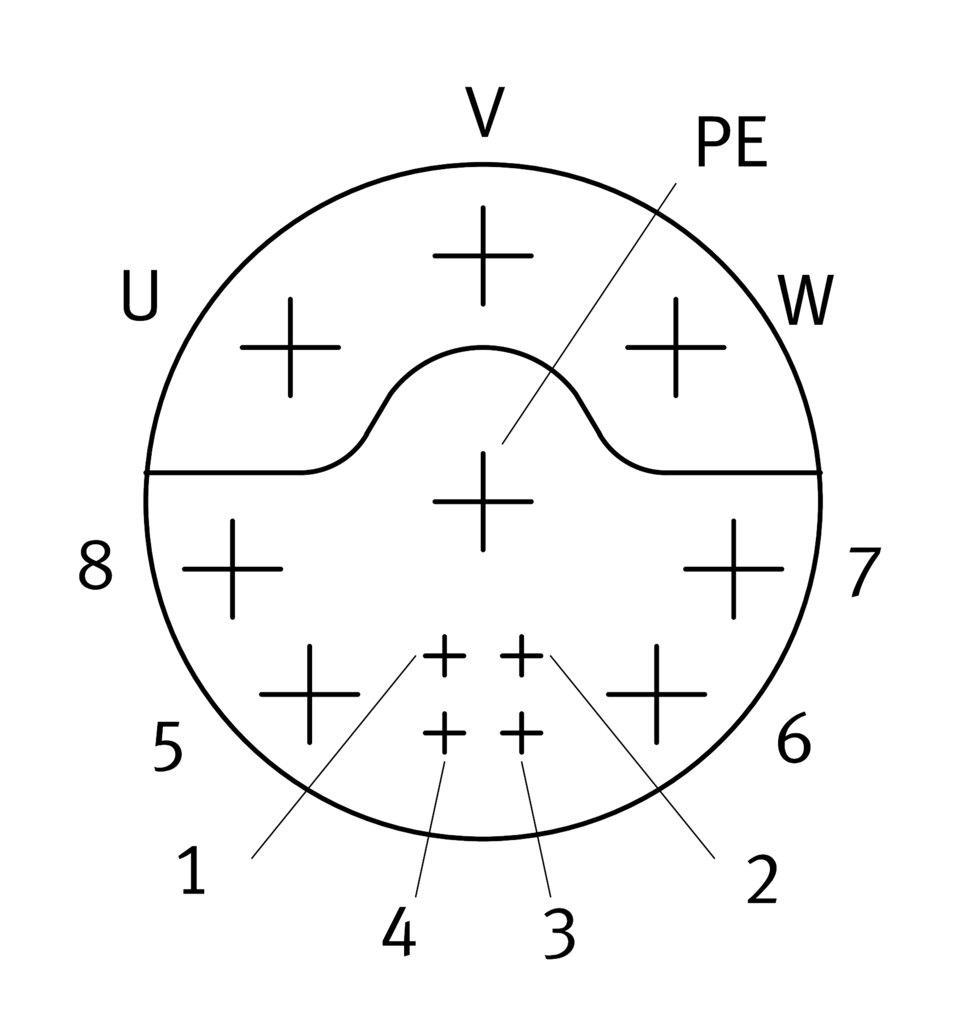

- Electrical connection 1, connection type
- Hybrid plug
- Electrical connection 1, connection technology
- M17x0.75
- Electrical connection 1, number of pins/wires
- 15
- Contamination level
- 2
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress | (except laser marking)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- Approved for direct food contact
- Vibration resistance
- as per EN 60068-2-6
