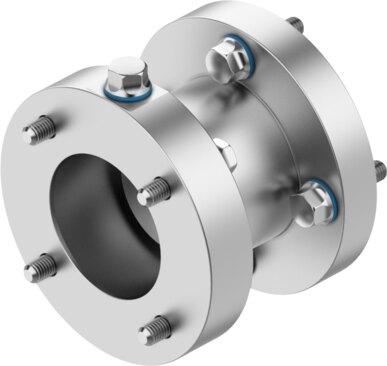

Reference imageConfirm configuration by manufacturer part number.
Festo
8216587
Axial kit EAMM-A-C42-8-68C-S5
The Festo 8216587 is an industrial component featuring a 1:1 gear ratio, a 53 mm nominal length, and an 800 g product weight with a mass moment of inertia of 5.87 kgmm². This unit supports a maximum rotational speed of 8000 rpm, a transferable torque of 6.5 Nm, a C42-6 actuator interface code, and a 78CB motor-in interface code with RoHS-compliant materials and VDMA24364 Zone III LABS conformity. It operates within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, 0 to 100% relative air humidity, and an IP69K degree of protection for mounting in any position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8216587
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8216587.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 53 mm
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 100%
- Degree of protection
- IP69K
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 6.5 Nm
- Product weight
- 800 g
- Interface code, actuator
- C42-6
- Interface code, motor in
- 78CB
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8216587. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
