8216588

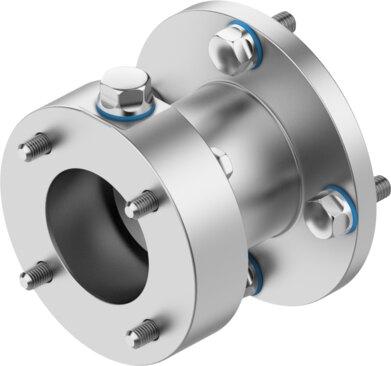

Name: Festo 8216588 Axial kit EAMM-A-C50-10-68C-S5
Brand: Festo

Axial kit EAMM-A-C50-10-68C-S5

Manufactured by Festo, part number 8216588 is an industrial component featuring a 1:1 gear ratio, a nominal length of 57 mm, and a product weight of 770 g. This unit delivers a transferable torque of 12.5 Nm, a mass moment of inertia of 5.87 kgmm², and a maximum rotational speed of 8000 rpm while utilizing a C50-10 actuator interface code and a 68C motor-in interface code. Featuring an IP69K degree of protection, VDMA24364 Zone III LABS conformity, RoHS-compliant materials, and an unrestricted mounting position, it operates within an ambient temperature range of -10 °C to 60 °C and stores between -25 °C and 60 °C at 0 to 100% relative air humidity. Submit the exact part number, quantity, and application requirements for an official quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8216588
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8216588.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal length: 57 mm
Mounting position: Any
Gear ratio: 1:1
Max. rotational speed: 8000 rpm
LABS (PWIS) conformity: VDMA24364 Zone III
Storage temperature: -25 °C...60 °C
Relative air humidity: 0 - 100%
Degree of protection: IP69K
Ambient temperature: -10 °C...60 °C
Mass moment of inertia: 5.87 kgmm²
Transferable torque: 12.5 Nm
Product weight: 770 g
Interface code, actuator: C50-10
Interface code, motor in: 68C
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8216588. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
