Festo
8216589

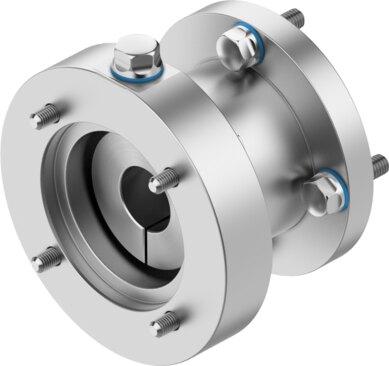

Axial kit EAMM-A-C50-10-88C-S5
Manufactured by Festo, part number 8216589 is an industrial component featuring a 1:1 gear ratio, a nominal length of 62 mm, and a product weight of 1150 g. This unit delivers a transferable torque of 17 Nm at a maximum rotational speed of 6500 rpm with a mass moment of inertia of 34.8 kgmm², utilizing a C50-10 actuator interface code and an 88C motor input interface. Constructed for diverse operational environments, it provides an IP69K degree of protection, VDMA24364 Zone III LABS conformity, RoHS compliance, an ambient temperature range of -10 °C to 60 °C, and storage capabilities between -25 °C and 60 °C at 0 to 100% relative air humidity in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8216589
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8216589.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 62 mm
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 6500 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 100%
- Degree of protection
- IP69K
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 1150 g
- Interface code, actuator
- C50-10
- Interface code, motor in
- 88C
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8216589. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
