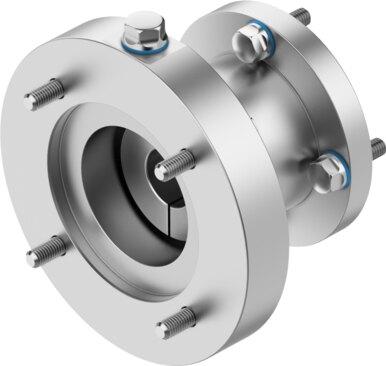

Reference imageConfirm configuration by manufacturer part number.
Festo
8216590
Axial kit EAMM-A-C50-10-108C-S5
The Festo 8216590 is an industrial component featuring a 1:1 gear ratio, a nominal length of 69 mm, and a transferable torque of 17 Nm with a mass moment of inertia of 34.8 kgmm². This RoHS-compliant part supports a maximum rotational speed of 6500 rpm, utilizes actuator interface code C50-10 and motor input interface code 108C, and weighs 1580 g with VDMA24364 Zone III LABS conformity. Rated to IP69K with any mounting position, it operates in ambient temperatures from -10 °C to 60 °C, storage temperatures from -25 °C to 60 °C, and 0 to 100% relative air humidity. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8216590
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8216590.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 69 mm
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 6500 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 100%
- Degree of protection
- IP69K
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 1580 g
- Interface code, actuator
- C50-10
- Interface code, motor in
- 108C
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8216590. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
