Festo
8216593

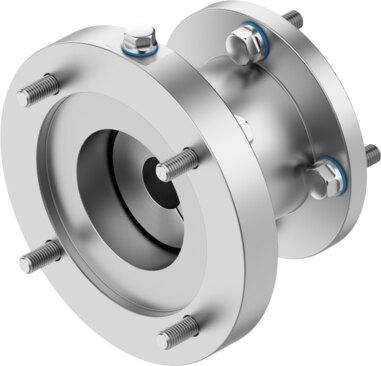

Axial kit EAMM-A-C68-16-138C-S5
The Festo industrial component, part number 8216593, features a nominal length of 84 mm, a 1:1 gear ratio, and a transferable torque of 60 Nm with a mass moment of inertia of 128 kgmm². Weighing 2960 g, the unit supports any mounting position, a maximum rotational speed of 5500 rpm, actuator interface code C68-16, and motor-in interface code 138C. It provides IP69K degree of protection, VDMA24364 Zone III LABS conformity, RoHS-compliant materials, and operates within an ambient temperature range of -10 °C to 60 °C, storage temperatures from -25 °C to 60 °C, and 0 to 100% relative air humidity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8216593
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8216593.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 84 mm
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 5500 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 100%
- Degree of protection
- IP69K
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 128 kgmm²
- Transferable torque
- 60 Nm
- Product weight
- 2960 g
- Interface code, actuator
- C68-16
- Interface code, motor in
- 138C
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8216593. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
