Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8217184

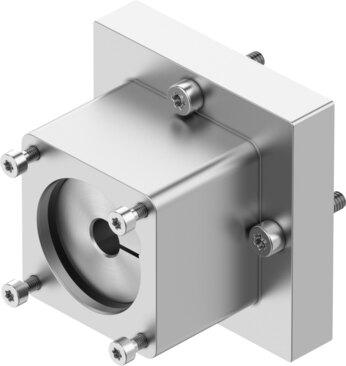

Axial kit EAMM-A-T42-40P
This Festo industrial component, part number 8217184, features a nominal length of 43 mm, a mass moment of inertia of 3.2 kgmm², and a transferable torque of 7.5 Nm with a maximum rotational speed of 8000 rpm. The unit includes actuator interface code T42 and motor input interface code 40P, supporting installation in any mounting position while weighing 178 g. Operating parameters include an ambient temperature range of -10 °C to 60 °C, storage temperatures from -25 °C to 60 °C, relative air humidity between 0 and 95%, IP40 degree of protection, and VDMA24364-B2-L LABS conformity with RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8217184
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8217184.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 43 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 3.2 kgmm²
- Transferable torque
- 7.5 Nm
- Product weight
- 178 g
- Interface code, actuator
- T42
- Interface code, motor in
- 40P
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8217184. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
