Festo
8217185

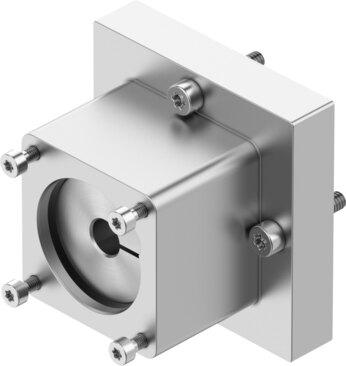

Axial kit EAMM-A-T42-40R
This Festo industrial component, part number 8217185, features a nominal length of 46 mm and a product weight of 178 g with VDMA24364-B2-L LABS conformity and RoHS compliance. The unit accommodates an actuator interface code T42 and motor-in interface codes 40R or 40RA, supporting a transferable torque of 7.5 Nm and a max. rotational speed of 8000 rpm while maintaining a mass moment of inertia of 3.2 kgmm² in any mounting position. Operating reliably within an ambient temperature of -10 °C to 60 °C, a storage temperature of -25 °C to 60 °C, and a relative air humidity of 0 to 95%, this IP40-rated assembly is ready for procurement. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8217185
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8217185.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 46 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 3.2 kgmm²
- Transferable torque
- 7.5 Nm
- Product weight
- 178 g
- Interface code, actuator
- T42
- Interface code, motor in
- 40R | 40RA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8217185. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
